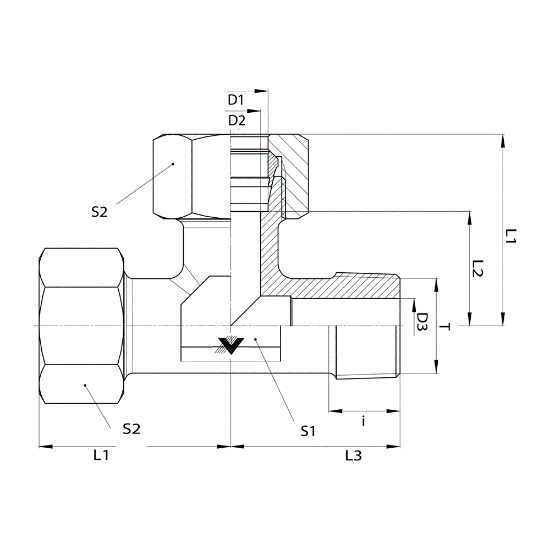

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

D8605-L12-16-L12-SS-X

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU D8605-L12-16-L12-SS-X

Products specifications

Attribute name	Attribute value
UOM	EA	Series	D8605-X
Connection Type	MBT-MMT-MBT (Body Only)	Style	DIN Fitting
Thread Size 2	M16 x 1.5	Type	Tee
Weight	0.152 LB	Max. Dynamic Pressure	315 Bar
Connection Specification 1	DIN 2353, ISO 8434-1	Material	Stainless Steel
Standard	Prop-65 Warning	Body Hex	17 MM
Thread Size 3	M18 x 1.5	Thread Size 1	M18 x 1.5
Tube Size 3	12 MM	Thread ID	9 MM
End Type 1	Male Metric 24 Degree DIN Seat	Connection Specification 3	DIN 2353, ISO 8434-1
Connection Specification 2	DIN 158	Tube Size 1	12 MM
End Type 2	Male Metric Tapered	End Type 3	Male Metric 24 Degree DIN Seat
Raw Material Type	Stainless Steel Forging
