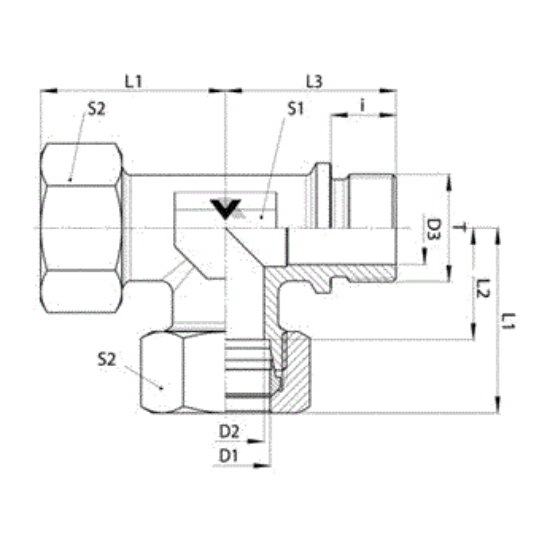

D8804-L22-26-L22-CF-SS-X

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU D8804-L22-26-L22-CF-SS-X

Products specifications

Attribute name	Attribute value
UOM	EA	Style	DIN Fitting
Series	D8804-CF-X	Connection Type	MBT-MM CF-MBT (Body Only)
Material	Stainless Steel	Thread Size 2	M26 x 1.5
Connection Specification 1	DIN 2353, ISO 8434-1	Type	Tee
Standard	Prop-65 Warning	Weight	0.531 LB
Max. Dynamic Pressure	250 Bar	Thread Size 3	M30 x 2.0
Thread Size 1	M30 x 2.0	Raw Material Type	Stainless Steel Forging
Connection Specification 2	ISO 9974 Form B	End Type 2	Male Metric Form B
End Type 3	Male Metric 24 Degree DIN Seat	Tube Size 3	22 MM
Thread ID	18 MM	Body Hex	27 MM
Connection Specification 3	DIN 2353, ISO 8434-1	Tube Size 1	22 MM
End Type 1	Male Metric 24 Degree DIN Seat
