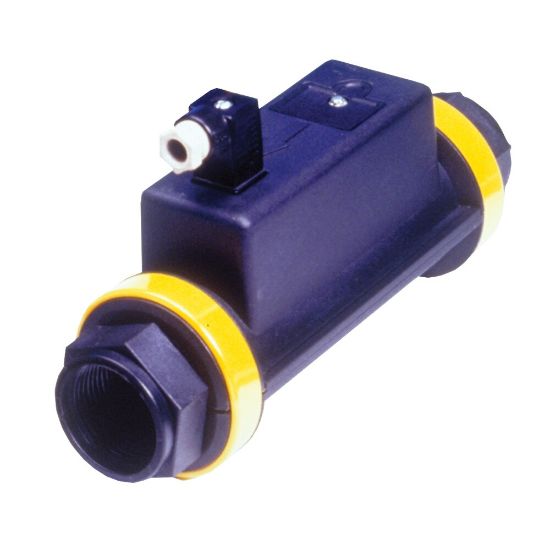

DFT990 - Dataflow - Flow Transmitters

An extensive range of flow metering products. Dataflow 4-20mA and pulse output flow transmitters and the Dataflow Compact inline flow transmitter for reading up to 150 LPM.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 49 days
Partner Available:	Backordered

SKU DFT990

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Glass filled nylon
Signal Output	4-20mA	Materials of Construction	Grilamid - TR55
Flow Rate	1 to 150 L/min	Operating Temperature	Water: 41 to 140 °F
Port Type	BSP	Electrical Requirements	24 VDC
Product Style	Flow Meter	Brand	Parker
Specifications Met	Pressure Directive	Sensing Method	Infra-red
Division	Hydraulic & Industrial Process Filtration Division EMEA	Communication Interface	DIN 43650
Industry	Industrial Manufacturing Equipment	Minimum Fluid Temperature	Water: 41 °F
Seal Material	Nitrile	For Fluid Type	Water
Division	Hydraulic & Industrial Process Filtration Division EMEA	Height	106 mm
Width	60 mm	Maximum Fluid Temperature	Water: 140 °F
Length	196 mm	Accuracy	+/- 2% FSD
Port Size	3/8 inch	Product Type	Condition Monitor
Operating Pressure	145 psi	Technology	Hydraulics

Product resources

Literature and Reference Materials

Dataflow_bulletin.pdf (PDF)
