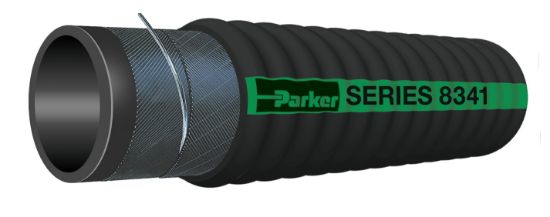

8341-6000 - DAY-LITE® Corrugated Material Handling Suction & Vacuum Hose, Series 8341

Day-Lite Large Corrugated Material Handling Suction & Vacuum Hose incorporates a thick rubber tube and is designed for transfer service of highly abrasive materials in applications to 180°F and 75 psi, Series 8341

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 15 days
Partner Available:	Backordered

SKU 8341-6000

$88.11/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	6
Cover Color	Black	Outside Diameter	170 mm
Weight	4.41 lb/ft	Inside Diameter	152.4 mm
Maximum Operating Pressure	5.2 bar	Maximum Operating Temperature	180 °F
Hose Inner Tube Material	Black	Division	Hose Products Division
Length per Package	100 ft	Cover Material	Natural Rubber (NR)/Styrene Butadiene Rubber (SBR)
Minimum Bend Radius	18 inch	Minimum Operating Temperature	-40 °C
Media	Wet Abrasive Powders	Package Type	Coil
Cover Structure	Corrugated	Application	Material Handling
Hose Reinforcement Material	2 Plies of Textile with Wire Helix	Specifications Met	n/a

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
