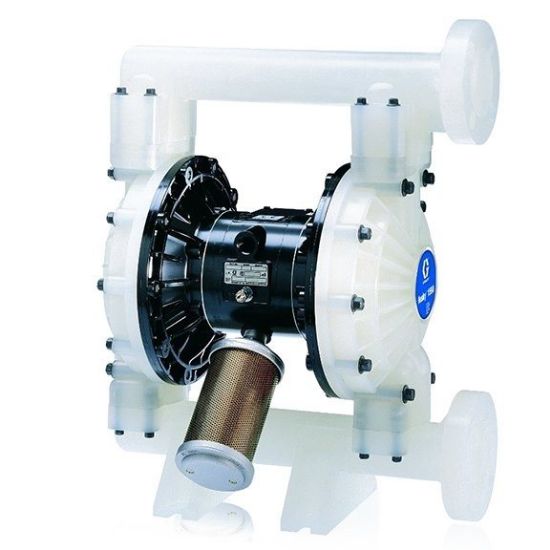

DB2711

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU DB2711

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Polypropylene
Seat Material	Buna-N	Ball Material	PTFE
Connection Type	Threaded	Series	1590
Type	Pneumatic	Air Exhaust Port Thread Gender	Female
Weight	35 lb	Maximum Flow Rate	100 GPM
Maximum Cycle Rate	200 CPM	Fluid Outlet Thread Type	NPT
Manifold Configuration	End Port	Maximum Solid Size	0.1875 Inch
Air Inlet Thread Type	NPT	Fluid Inlet Thread Type	NPT
Maximum Operating Temperature	150 deg F	Maximum Air Consumption	125 SCFM
Model	Husky	Air Inlet Size	1/2 Inch
Air Exhaust Port Thread Type	NPT	Diaphragm Compatible Material	PTFE
Fluid Outlet Thread Gender	Female	Diaphragm Material	PTFE/EPDM 2-Piece
Fluid Inlet Size	1-1/2 Inch	Air Inlet Thread Gender	Female
Center Section Material	Aluminum	Air Exhaust Port Size	3/4 Inch
Fluid Inlet Thread Gender	Female	Fluid Outlet Size	1-1/2 Inch
