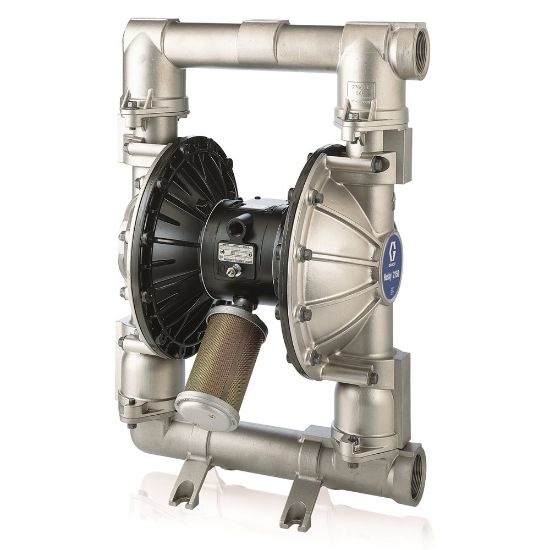

DBD388

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU DBD388

Products specifications

Attribute name	Attribute value
UOM	EA	Ball Material	Fluoroelastomer
Weight	71 lb	Maximum Flow Rate	100 GPM
Connection Type	Threaded	Series	1590
Material	Stainless Steel	Air Exhaust Port Thread Gender	Female
Type	Pneumatic	Air Inlet Thread Type	NPT
Center Section Material	Aluminum	Fluid Inlet Size	1-1/2 Inch
Air Inlet Thread Gender	Female	Model	Husky
Air Inlet Size	1/2 Inch	Maximum Operating Temperature	150 deg F
Air Exhaust Port Thread Type	NPT	Maximum Cycle Rate	200 CPM
Maximum Solid Size	0.1875 Inch	Manifold Configuration	End Port
Maximum Air Consumption	125 SCFM	Fluid Inlet Thread Type	BSPT
Diaphragm Material	Fluoroelastomer	Diaphragm Compatible Material	FKM
Fluid Outlet Thread Type	BSPT	Fluid Outlet Size	1-1/2 Inch
Air Exhaust Port Size	3/4 Inch
