*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

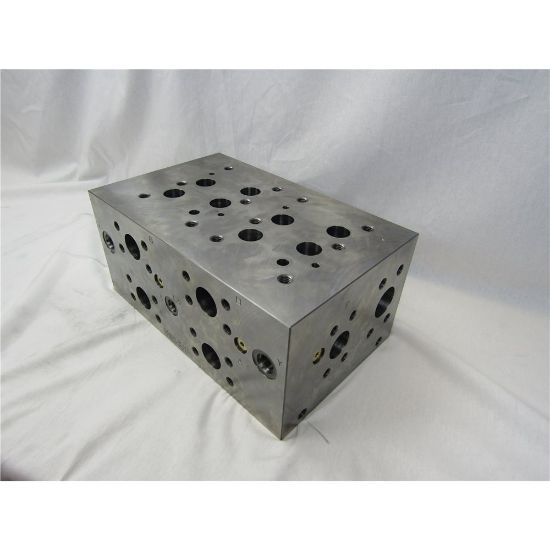

DD08HP025F

Manufacturer: Daman

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU DD08HP025F

$1,357.80/each

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Ductile Iron - D4512
Dimensions	6.03X8.03X12.88	Port Size	1.50" T, 1.25" P, A & B
Circuit	Parallel Circuit High Flow	Cavity	Without Cavity
Pattern	D08 / ISO 4401-08-07, NFPA T3.5.1-D08	Stations	2
Valve Spacing	5.25 Inch	Port Type	CODE 61 4-Bolt Flange, SAE J518 - CODE 61, ISO 6162 - 2.5 to 35 MPa
