*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

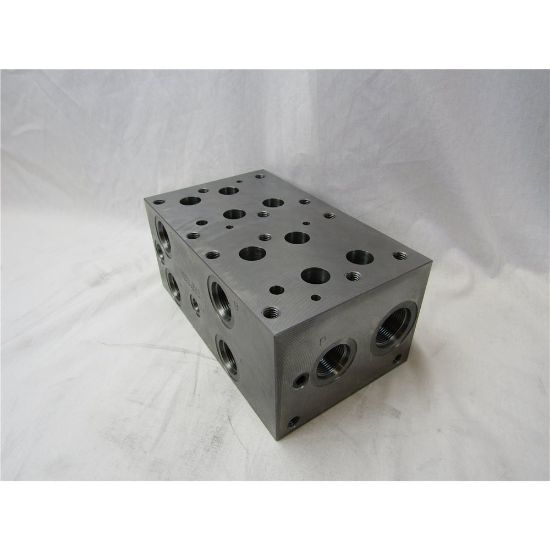

DD08P025S/C

Manufacturer: Daman

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU DD08P025S/C

$951.39/each

Products specifications

Attribute name	Attribute value
UOM	EA	Dimensions	4.78X6.28X10.53
Material	Ductile Iron - D4512	Port Size	-20 T, -16 P, A & B
Valve Spacing	5.25 Inch	Stations	2
Pattern	D08 / ISO 4401-08-07, NFPA T3.5.1-D08	Port Type	SAE - ISO 11926
Cavity	Common Cavity: With solenoid clearance. C-10-2 (P in nose)	Circuit	Parallel Circuit Standard Flow
