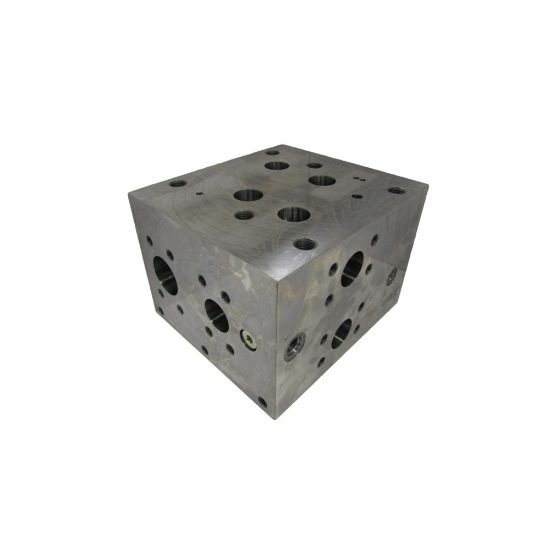

DD10P019F

Manufacturer: Daman

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU DD10P019F

$1,700.97/each

Products specifications

Attribute name	Attribute value
UOM	EA	Port Size	2.00" T, 1.50" P, A & B
Dimensions	7.03X9.03X10	Material	Ductile Iron - D4512
Stations	1	Port Type	CODE 61 4-Bolt Flange, SAE J518 - CODE 61, ISO 6162 - 2.5 to 35 MPa
Valve Spacing	9 Inch	Circuit	Parallel Circuit Standard Flow
Pattern	D10 / ISO 4401-10-08, NFPA T3.5.1-D10
