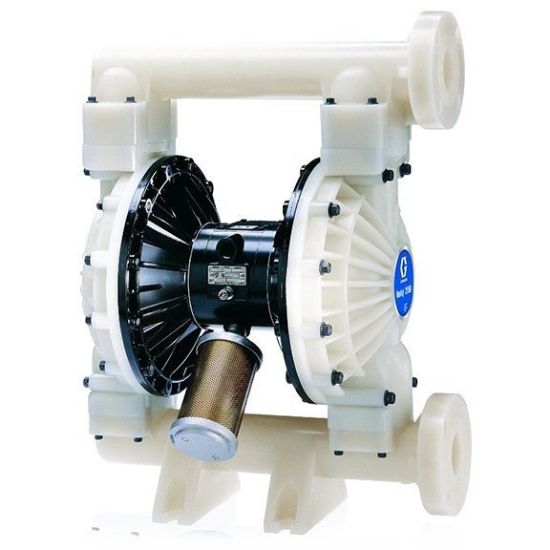

DF5311

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU DF5311

Products specifications

Attribute name	Attribute value
UOM	EA	Seat Material	Stainless Steel
Material	PVDF	Air Exhaust Port Thread Gender	Female
Series	2150	Connection Type	End Flange ANSI/DIN
Type	Pneumatic	Ball Material	PTFE
Maximum Flow Rate	150 GPM	Weight	68 lb
Manifold Configuration	End Port	Air Inlet Thread Type	NPT
Fluid Inlet Size	2 Inch	Fluid Outlet Size	2 Inch
Maximum Operating Temperature	150 deg F	Air Inlet Size	1/2 Inch
Air Exhaust Port Thread Type	NPT	Model	Husky
Diaphragm Compatible Material	PTFE	Maximum Solid Size	0.25 Inch
Diaphragm Material	PTFE/EPDM 2-Piece	Maximum Air Consumption	175 SCFM
Maximum Cycle Rate	145 CPM	Air Inlet Thread Gender	Female
Air Exhaust Port Size	3/4 Inch	Center Section Material	Aluminum
