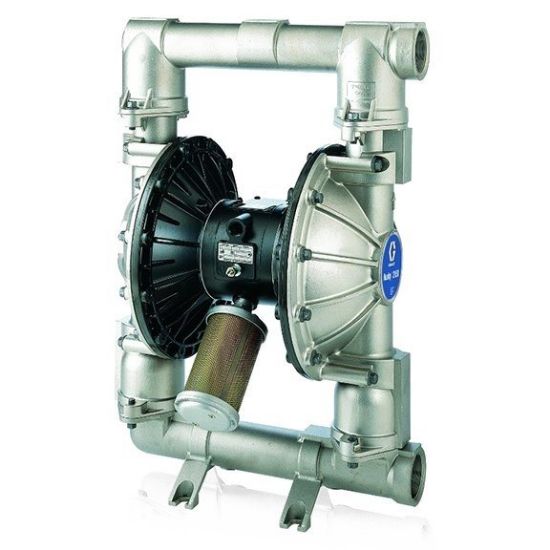

DFD966

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU DFD966

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Flow Rate	150 GPM
Weight	111 lb	Ball Material	Santoprene
Series	2150	Connection Type	Threaded
Material	Stainless Steel	Seat Material	Polypropylene
Type	Pneumatic	Air Exhaust Port Thread Gender	Female
Air Exhaust Port Size	3/4 Inch	Center Section Material	Aluminum
Fluid Outlet Thread Type	BSPT	Diaphragm Compatible Material	Santoprene
Air Inlet Thread Type	NPT	Air Inlet Thread Gender	Female
Air Exhaust Port Thread Type	NPT	Model	Husky
Maximum Operating Temperature	150 deg F	Air Inlet Size	1/2 Inch
Manifold Configuration	End Port	Maximum Cycle Rate	145 CPM
Maximum Air Consumption	175 SCFM	Maximum Solid Size	0.25 Inch
Diaphragm Material	Santoprene	Fluid Inlet Size	2 Inch
Fluid Outlet Size	2 Inch	Fluid Inlet Thread Type	BSPT
