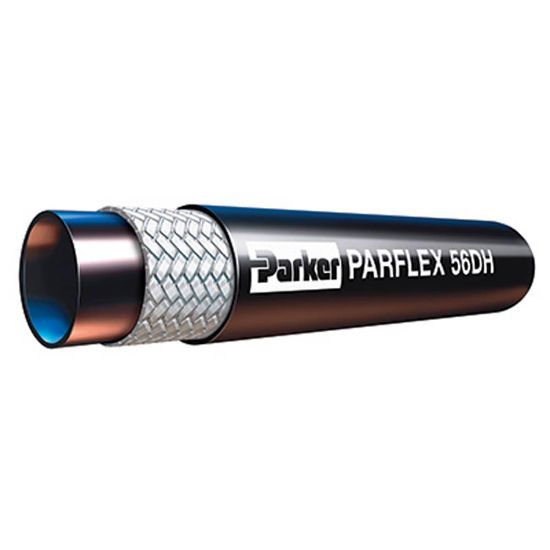

56DH-1.5 - Diagnostic Hose - 56DH

Parker 56DH diagnostic hose is a 6,000 psi hose offering the best in class performance. Parflex diagnostic hose reduces the volume of fluid in the system over -4 rubber hose.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	170 in stock

SKU 56DH-1.5

$6.52/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	.090
Inside Diameter	2 mm	Maximum Operating Pressure	414 bar
Weight	0.02 kg/m	Size	-1.5
Division	Parflex Division	Design Factor	4:1
Maximum Operating Temperature	93 °C	Hose Inner Tube Material	Polyamide (PA)
Compatible Fitting	SF Series	Media	Petroleum Hydraulic Fluids
Minimum Bend Radius	1/4 inch	Minimum Operating Temperature	-40 °F
Cover Material	Polyurethane	Application	Pneumatics
Hose Reinforcement Material	Aramid Fiber	Specifications Met	MSHA
Outside Diameter	0.210 inch
