56DH-2 - Diagnostic Hose - 56DH

Name: 56DH-2 - Diagnostic Hose - 56DH
SKU: 56DH-2
Price: 6.41 USD
Availability: InStock

Parker 56DH diagnostic hose is a 6,000 psi hose offering the best in class performance. Parflex diagnostic hose reduces the volume of fluid in the system over -4 rubber hose.

Manufacturer: Parker

Availability:

1917 in stock

Kansas City, KS	533
TOPEKA, KS	521
Olivette, MO	325
Decatur, IL	276
Peoria, IL	256
Wichita, KS	4

Partner Available:

9453 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 56DH-2

$6.41/foot

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	.140
Hose Inner Tube Material	Polyamide (PA)	Media	Water
Design Factor	4:1	Minimum Operating Temperature	-40 °C
Cover Material	Polyurethane	Hose Reinforcement Material	Aramid Fiber
Minimum Bend Radius	1/2 inch	Specifications Met	MSHA
Application	Diagnostics	Outside Diameter	0.320 inch
Maximum Operating Pressure	6000 psi	Inside Diameter	0.140 inch
Weight	0.05 kg/m	Division	Parflex Division
Compatible Fitting	CY Series	Size	-2
Maximum Operating Temperature	200 °F

Customers who bought this item also bought

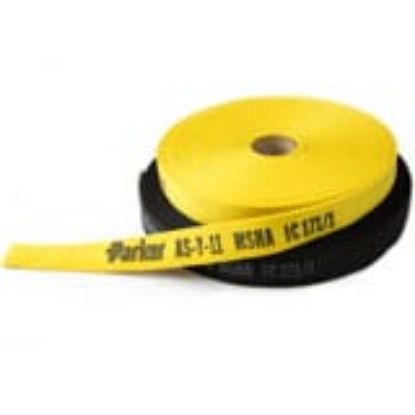

AS-B-11 - Hose Sleeve - Partek Sleeve
