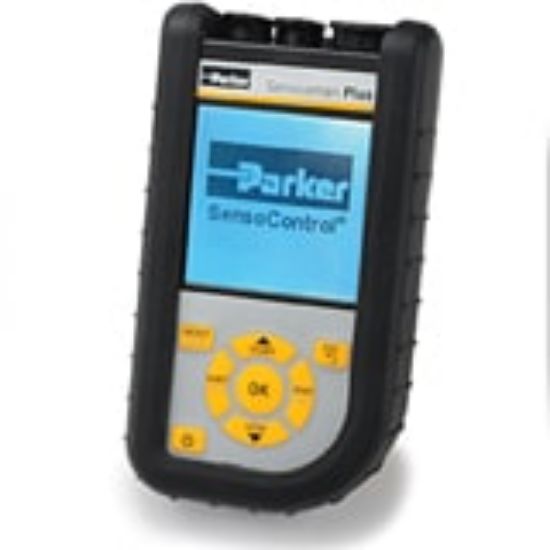

PDS4-6-06-06-CAN - Diagnostic Test Meter and Accessories, Measure and Record with Analog or CAN Sensors, Parker SensoControl Serviceman Plus Kits

Note: PDS kit part numbers are no longer available as the part numbers have changed. Please refer to the “Recommended Products” section below to visit the updated products page, or contact us for further assistance.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU PDS4-6-06-06-CAN

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Style	EMA
Sensor type	(2) Pressure transducers	Measuring Range 1 (psi)	0 to 870 psi (green)
Technology Option	CAN bus	Measuring Range 2 (psi)	0 to 870 psi (green)
Application	Hydraulic or pneumatic system diagnostics	Brand	SensoControl
Includes	(2) Transducer cables - 5m, (1) CAN Y cable with Terminating Resistor, (1) USB cable - 1m	Diagnostic Meter Type	Parker Serviceman Plus
Software	SensoWin	Division	Quick Coupling Division
Power Supply Voltage	120 Volt AC	Memory Type	Nano USB stick - 1GB
Case Type	Small carrying case

Product resources

Compliance, Certifications & Safety

HPCE_ISO9001_WBL (PDF)
