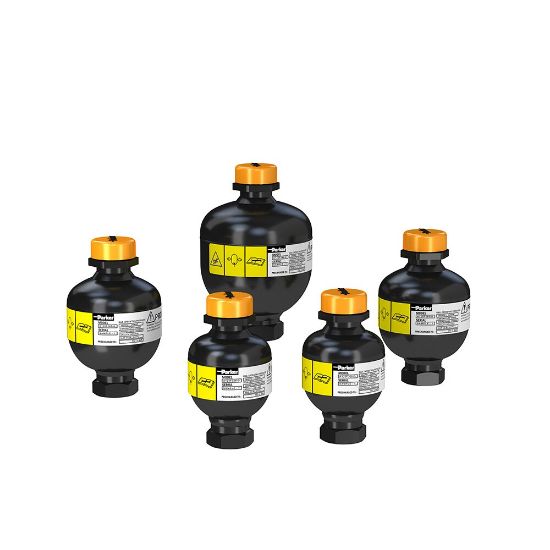

AD075A25T9A1 - Diaphragm Accumulators - AD Series - (Americas)

Diaphragm accumulators provide an affordable means of storing energy under pressure, absorbing hydraulic shocks, dampening pump pulsation/flow fluctuations. They provide dependable performance in a lightweight, compact design.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU AD075A25T9A1

$734.00/each

Products specifications

Attribute name	Attribute value
UOM	EA	Valve Type	M28x1.5 Metric Gas Valve
Nominal Volume (l)	0.75 l	Diaphragm Material	Hydrin
Compression Ratio	8:1	Division	Accumulator and Cooler Division
Height	169 mm	Maximum Flow Rate	100 L/min
Operating Temperature	-40 to 80 °C	Weight	6.6 lbs
Maximum Operating Pressure	250 bar	Body Material	High Strength Alloy Steel
Repairable	Non-Repairable	Specifications Met	Consult Factory
Diameter	4.87 inch	Port Type	SAE #8 (3/4-16 UNF) Female
Gas Volume	45 inch3
