*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

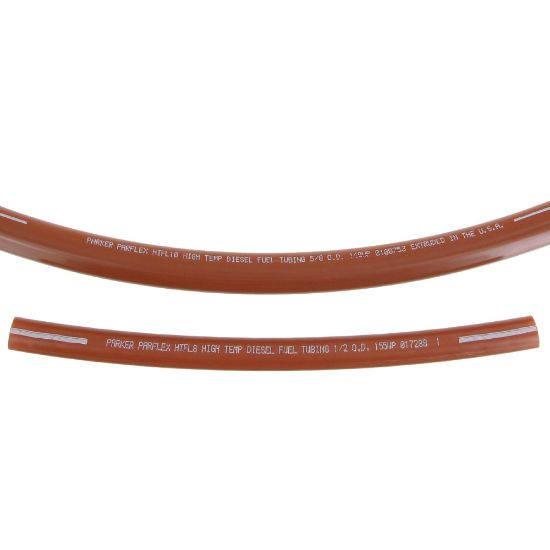

HTFL-10B-BRN-250 - Diesel Fuel Tubing

Parker's Nylon Diesel Fuel Tubing - HTFL & PFT diesel fuel line tubing is heat and light stabilized, quality controlled and pressure tested for superior performance.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	129 in stock

SKU HTFL-10B-BRN-250

$8.55/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Order Size	5/8
Product Style	HTFL - Temp. up to 266˚F (130˚C)	Cover Color	Brown
Weight	0.106 kg/m	Maximum Operating Pressure	9.7 bar
Compatible Fitting	NTA®	Maximum Operating Temperature	266 °F
Size	-10	Length per Package	250 ft
Division	Parflex Division	Color	Brown
Minimum Operating Temperature	-50 °F	Cover Material	Polyamide (PA)
Tube Inside Diameter	0.441 inch	Minimum Bend Radius	2-7/8 inch
Media	Fuels (Diesel)	Tube Material	Polyamide (PA)
Product Type	High Temperature up to 266˚F (130˚C)	Minimum Burst Pressure	900 psi
Specifications Met	MIL-DTL-83133 HTFL Tubing Compatible with JP-5 and JP-8	Tube Outside Diameter	16 mm
Application	Transportation
