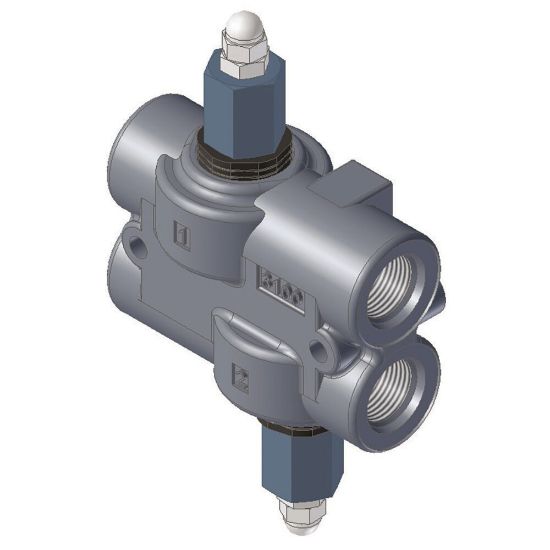

DWV-50-3000 - Differential Area Crossover Relief - DWV Series

Parker’s DWV Crossover Relief Valve is a fast-acting differential area design that provides pressure overload protection for an actuator where the relieved flow is 30 GPM or less. They are installed between the control valve and actuator.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 45 days
Partner Available:	Backordered

SKU DWV-50-3000

$523.32/each

Products specifications

Attribute name	Attribute value
UOM	EA	Pressure Relief Setting (psi)	2000-3000
Port Size	1/2"-14 NPT	Adjustment Type	Shim Adjustable
Seal Material	Nitrile	Division	Hydraulic Valve Systems Division
Maximum Flow Rate	25 Gal/min	Maximum Operating Temperature	+200 °F
For Fluid Type	Hydraulic Oil	Minimum Operating Temperature	-40 °F
Actuation Type	Hydraulic Pressure	Pressure Control Range	2000-3000 psi
Mounting Type	In-Line	Maximum Operating Pressure	2000 psi
Weight	5 lb	Body Material	High Strength Cast Iron
