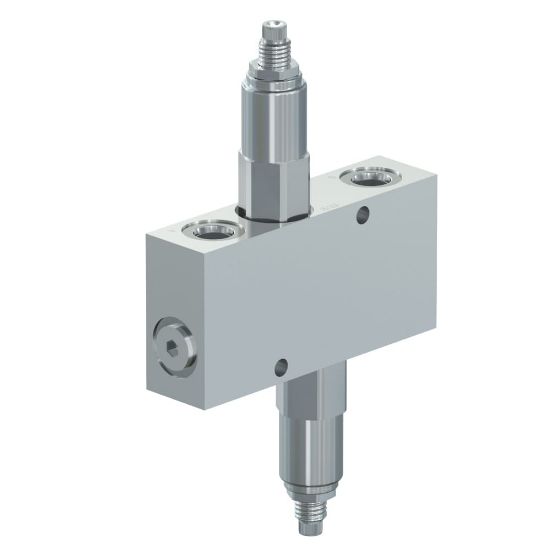

XRDH101S10-8T - Direct Acting Cross-Over Relief Valves

Cross-Over Relief cartridge valves provide pressure protection to hydraulic motors, cylinders and rotary actuators up to 120 lpm (32 gpm) and 350 bar (5000 psi). Available in single or dual cartridge, in-line, manifold, or motor mount configurations.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 351 days
Partner Available:	Backordered

SKU XRDH101S10-8T

$389.54/each

Products specifications

Attribute name	Attribute value
UOM	EA	Adjustment Mechanism	Screw
Maximum Inlet Pressure Rating	5000 PSI, 350 BAR	Cracking Pressure	N/A
Seal Material	D-Ring (Standard)	Mounting Type	Line Mounted
Pressure Control Range	100-1000 PSI, 6.9-69 BAR	Standard Setting Pressure	500 PSI, 34.5 BAR
Flow Rate	20 GPM, 75 L/MIN	Division	Hydraulic Systems Division
Operating Temperature	-35 to +200 °F	Flow Rate	20 Gal/min
Actuation Type	Pressure Sensing	Maximum Flow Rate	20 Gal/min
Maximum Operating Pressure	350 bar	Maximum Operating Temperature	+200 °F
Minimum Operating Temperature	-37 °C	Body Material	Steel
Seal Material	D-Ring (Standard)	Weight	4.5 lb
Mounting Type	Line Mounted	Operation Type	Automatic
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Configuration	Dual Cross-Over Relief
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Function	Bi-directional
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Port Thread Size	SAE-8
Leak Rate	5 @ 75% Crack Pressure drops/min	Cavity Size	N/A
Valve Material	All parts steel. All operating parts hardened steel	Installation Torque	N/A Nm
Maximum Inlet Pressure Rating	5000 psi	Adjustment Mechanism	Screw
Cracking Pressure	N/A psi	Maximum Pressure Setting	69 bar
Reseat Pressure	85% of pressure setting	Maximum Tank Pressure	350 bar
Pressure Control Range	100-1000 psi	Standard Setting Pressure	34.5 bar
Pressure Control Sensitivity	9.8 per turn bar
