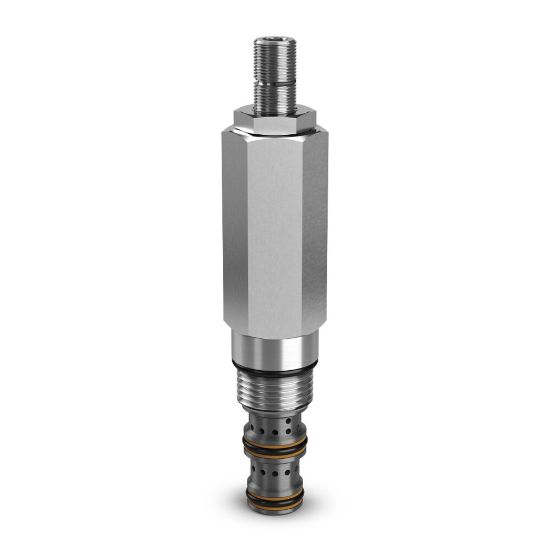

C02A3CZN - Direct Acting Pressure Reducing Relieving Valves

Parker’s direct acting reducing & relieving valves are used in intermittent duty applications where specific functions require reduced and regulated pressure. Capable of flows up to 56 lpm (13 gpm) and pressures up to 420 bar (6000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	Backordered

SKU C02A3CZN

$249.81/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Adjustment Mechanism	Screw	Maximum Inlet Pressure Rating	6000 PSI, 420 BAR
Flow Rate	5 GAL/MIN, 20 L/MIN	Pressure Control Range	73-580 PSI, 5-40 BAR
Pressure Control Range	5 to 40 bar	Operating Temperature	-34 to 121 °C
Pressure Control Sensitivity	5.6 bar Per Turn	Flow Rate	20 L/min
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Configuration	Pressure Reducing/Relieving
Maximum Operating Pressure	6000 psi	Body Material	n/a
Actuation Type	Pressure Sensing	Filter Efficiency Rating	ISO 4406 18/16/13
Maximum Pressure Differential	n/a	Weight	0.44 lb
Installation Torque	40 Nm	Standard Setting Pressure	20 bar
Division	Mobile Hydraulic Systems Division Europe	Operation Type	Automatic
Maximum Flow Rate	20 L/min	For Fluid Type	Mineral-based Hydraulic Fluids
Maximum Drain Flow Rate	n/a	Seal Material	Nitrile
Valve Material	Hardened Steel (all operating parts)	Maximum Operating Temperature	121 °C
Maximum Pressure Setting	40 bar	Function	Direct Acting
Maximum Tank Pressure	6000 psi	Maximum Inlet Pressure Rating	6000 psi
Adjustment Mechanism	Screw	Cavity Size	C08-3
Minimum Operating Temperature	-34 °C	Mounting Type	Screw-in Cartridge
