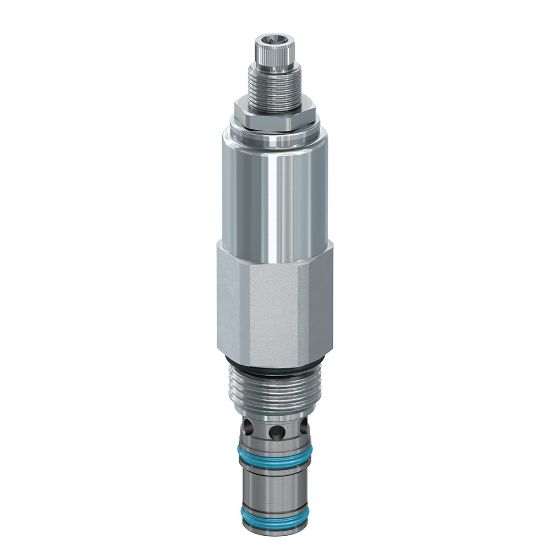

PR103K21V - Direct Acting Pressure Reducing Relieving Valves

Parker’s direct acting reducing & relieving valves are used in intermittent duty applications where specific functions require reduced and regulated pressure. Capable of flows up to 56 lpm (13 gpm) and pressures up to 420 bar (6000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU PR103K21V

$79.39/each

Products specifications

Attribute name	Attribute value
UOM	EA	Adjustment Mechanism	Knob
Maximum Inlet Pressure Rating	3000 PSI, 210 BAR	Flow Rate	15 GAL/MIN, 56 L/MIN
Seal Material	Fluorocarbon	Pressure Control Range	600-1800 PSI, 41.4-124 BAR
Adjustment Mechanism	Knob	Minimum Operating Temperature	-26 °C
Mounting Type	Screw in cartridge valve	Pressure Control Range	41.4-124 bar
Operating Temperature	-26 to +204 °C	Configuration	Pressure Reducing/Relieving
Pressure Control Sensitivity	250 per turn psi	Flow Rate	15 Gal/min
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Maximum Pressure Differential	1000 psi
Function	Direct Acting	Maximum Tank Pressure	124 bar
Cavity Size	C10-3	Maximum Flow Rate	56 L/min
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel.
Seal Material	Fluorocarbon	Maximum Operating Temperature	+400 °F
Maximum Inlet Pressure Rating	210 bar	Maximum Pressure Setting	124 bar
Maximum Operating Pressure	3000 psi	Actuation Type	Pressure Sensing
Body Material	N/A	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Weight	0.5 lb	Installation Torque	37-41 lb-ft
Standard Setting Pressure	1000 psi	Maximum Drain Flow Rate	0.12 L/min
Division	Hydraulic Systems Division	Operation Type	Automatic
