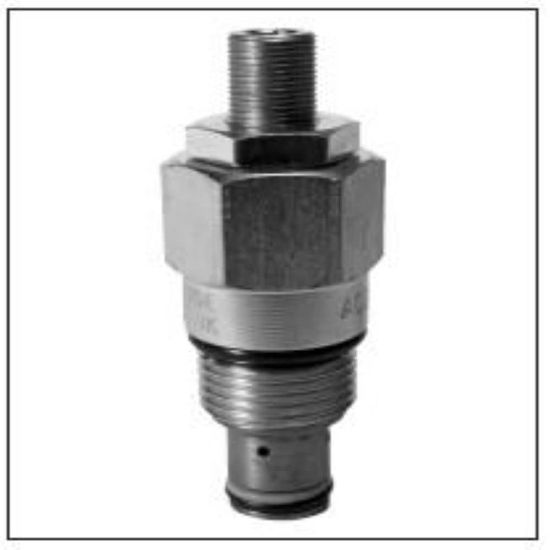

A02A2PZN - Direct Acting Relief Valves

Parker’s direct acting relief valves are available in several cavity sizes and are designed for continuous duty applications with pressures up to 420 bar (6000 psi) and flows up to 200 lpm (53 gpm).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	23 in stock

SKU A02A2PZN

$198.27/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Flow Rate	1.6 GAL/MIN, 6 L/MIN	Adjustment Mechanism	Screw
Pressure Control Range	145-6000 PSI, 10-420 BAR	Maximum Inlet Pressure Rating	6000 PSI, 420 BAR
Installation Torque	30 lb-ft	Weight	0.11 kg
Maximum Operating Pressure	420 bar	Body Material	n/a
Operation Type	Automatic	Standard Setting Pressure	200 bar
Reseat Pressure	n/a	Division	Mobile Hydraulic Systems Division Europe
Mounting Type	Screw-in Cartridge	Pressure Control Range	10 to 420 bar
Flow Rate	6 L/min	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Pressure Control Sensitivity	800 psi Per Turn	Configuration	Pressure Relief
Actuation Type	Pressure Sensing	Operating Temperature	-30 to 250 °F
Filter Efficiency Rating	ISO 4406 18/16/13	Wire Mesh Screen Included	n/a
Function	Direct Acting	Minimum Operating Temperature	-34 °C
Cavity Size	C08-2	Adjustment Mechanism	Screw
Leak Rate	5 drops/min @ 1450 Psi (100 bar)	Maximum Flow Rate	6 L/min
For Fluid Type	Mineral-based Hydraulic Fluids	Maximum Operating Temperature	121 °C
Valve Material	Hardened Steel (all operating parts)	Maximum Pressure Setting	6000 psi
Maximum Tank Pressure	420 bar	Seal Material	Nitrile
Maximum Inlet Pressure Rating	420 bar
