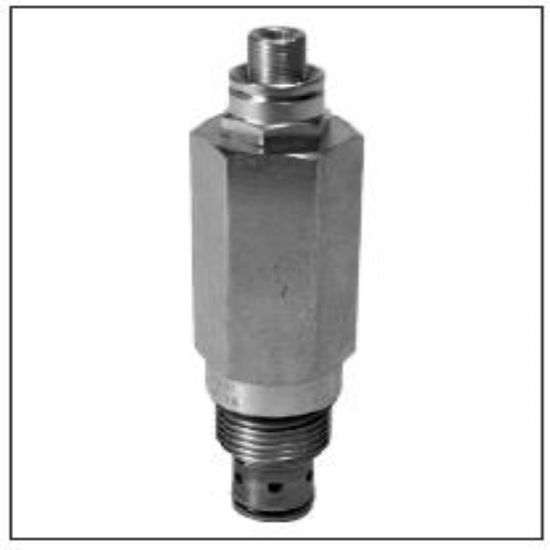

A02B2FZN - Direct Acting Relief Valves

Parker’s direct acting relief valves are available in several cavity sizes and are designed for continuous duty applications with pressures up to 420 bar (6000 psi) and flows up to 200 lpm (53 gpm).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	Backordered

SKU A02B2FZN

$137.01/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Adjustment Mechanism	Screw	Maximum Inlet Pressure Rating	6000 PSI, 420 BAR
Flow Rate	8 GAL/MIN, 30 L/MIN	Pressure Control Range	29-1450 PSI, 2-100 BAR
For Fluid Type	Mineral-based Hydraulic Fluids	Maximum Flow Rate	30 L/min
Maximum Inlet Pressure Rating	6000 psi	Maximum Operating Temperature	121 °C
Valve Material	Hardened Steel (all operating parts)	Maximum Pressure Setting	100 bar
Leak Rate	0.33 cm3/min @ 1450 Psi (100 bar)	Seal Material	Nitrile
Actuation Type	Pressure Sensing	Filter Efficiency Rating	SAE Class 4
Body Material	n/a	Weight	0.44 lb
Maximum Operating Pressure	6000 psi	Reseat Pressure	n/a
Division	Mobile Hydraulic Systems Division Europe	Installation Torque	30 lb-ft
Operation Type	Automatic	Standard Setting Pressure	725 psi
Mounting Type	Screw-in Cartridge	Pressure Control Range	29 to 1450 psi
Operating Temperature	-34 to 121 °C	Flow Rate	8 Gal/min
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Pressure Control Sensitivity	228 psi Per Turn
Configuration	Pressure Relief	Wire Mesh Screen Included	n/a
Function	Direct Acting	Maximum Tank Pressure	420 bar
Cavity Size	C08-2	Adjustment Mechanism	Screw
Minimum Operating Temperature	-34 °C
