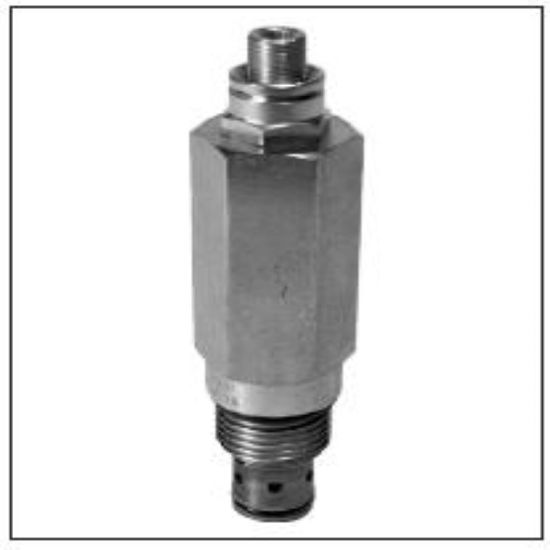

A02B2PZN - Direct Acting Relief Valves

Parker’s direct acting relief valves are available in several cavity sizes and are designed for continuous duty applications with pressures up to 420 bar (6000 psi) and flows up to 200 lpm (53 gpm).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	Backordered

SKU A02B2PZN

$144.06/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Adjustment Mechanism	Screw	Maximum Inlet Pressure Rating	6000 PSI, 420 BAR
Flow Rate	8 GAL/MIN, 30 L/MIN	Pressure Control Range	72-6000 PSI, 5-420 BAR
Filter Efficiency Rating	SAE Class 4	Maximum Operating Pressure	420 bar
Weight	0.2 kg	Body Material	n/a
Actuation Type	Pressure Sensing	Operation Type	Automatic
Standard Setting Pressure	200 bar	Division	Mobile Hydraulic Systems Division Europe
Reseat Pressure	n/a	Installation Torque	30 lb-ft
Minimum Operating Temperature	-30 °F	Adjustment Mechanism	Screw
Mounting Type	Screw-in Cartridge	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Configuration	Pressure Relief	Pressure Control Sensitivity	800
Operating Temperature	-30 to 250 °F	Pressure Control Range	5 to 420 bar
Flow Rate	8 Gal/min	Maximum Tank Pressure	6000 psi
Wire Mesh Screen Included	n/a	Function	Direct Acting
Cavity Size	C08-2	Maximum Flow Rate	30 L/min
For Fluid Type	Mineral-based Hydraulic Fluids	Maximum Pressure Setting	6000 psi
Leak Rate	5	Seal Material	Nitrile
Maximum Inlet Pressure Rating	420 bar	Maximum Operating Temperature	250 °F
Valve Material	Steel
