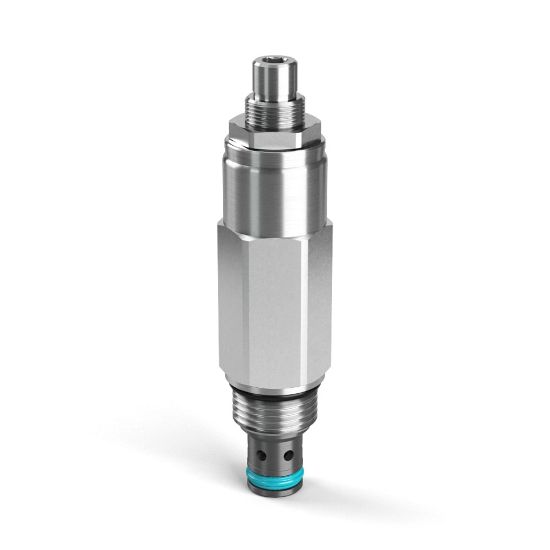

RDH082S15V - Direct Acting Relief Valves

Parker’s direct acting relief valves are available in several cavity sizes and are designed for continuous duty applications with pressures up to 420 bar (6000 psi) and flows up to 200 lpm (53 gpm).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU RDH082S15V

$67.64/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Fluorocarbon
Adjustment Mechanism	Screw	Flow Rate	8 GAL/MIN, 30 L/MIN
Maximum Inlet Pressure Rating	5500 PSI, 380 BAR	Pressure Control Range	100-1500 PSI, 6.9-103 BAR
Pressure Control Sensitivity	19.3 per turn bar	Flow Rate	8 Gal/min
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Operating Temperature	-15 to +400 °F
Pressure Control Range	6.9-103.4 bar	Configuration	Pressure Relief
Actuation Type	Pressure Sensing	Body Material	N/A
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Weight	0.18 kg
Maximum Operating Pressure	380 bar	Cavity Size	C08-2
Mounting Type	Screw in cartridge valve	Adjustment Mechanism	Screw
Minimum Operating Temperature	-15 °F	Maximum Operating Temperature	+400 °F
Maximum Inlet Pressure Rating	380 bar	Leak Rate	0.33 @ 75% Crack Pressure cm3/min
Maximum Pressure Setting	1500 psi	Valve Material	All parts steel. All operating parts hardened steel
Seal Material	Fluorocarbon	Maximum Tank Pressure	5000 psi
Wire Mesh Screen Included	N/A	Function	Direct Acting
Standard Setting Pressure	51.7 bar	Division	Hydraulic Systems Division
Reseat Pressure	85% of pressure setting	Operation Type	Automatic
Installation Torque	43-49 Nm	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Flow Rate	30 L/min
