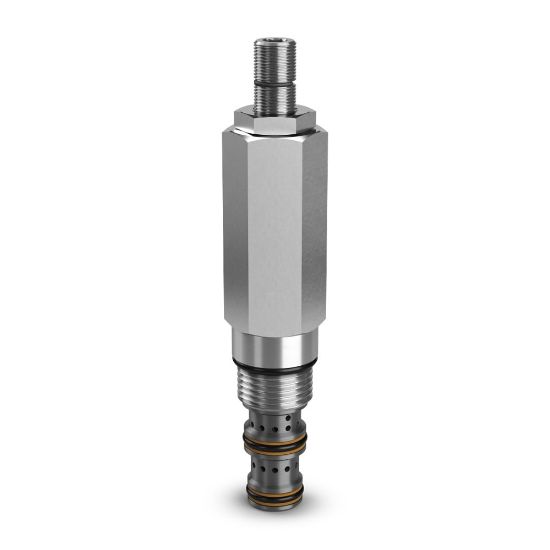

B02E3FZN - Direct Acting Sequence Valve

Parker’s direct acting sequence valves can be piloted and vented allowing multiple actuators to work in sequence based on pressure settings; working with flows up to 56 lpm (15 gpm) and pressures up to 420 bar (6000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 185 days
Partner Available:	Backordered

SKU B02E3FZN

$249.81/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Adjustment Mechanism	Screw	Maximum Inlet Pressure Rating	6000 PSI, 420 BAR
Flow Rate	8 GAL/MIN, 30 L/MIN	Sealed Pilot Included	No
Pressure Control Range	30-2150 PSI, 2-148 BAR	Division	Mobile Hydraulic Systems Division Europe
Operating Temperature	-34 to 121 °C	Flow Rate	8 Gal/min
Actuation Type	Pressure Sensing	Maximum Flow Rate	8 Gal/min
Maximum Operating Pressure	6000 psi	Maximum Operating Temperature	250 °F
Minimum Operating Temperature	-34 °C	Body Material	n/a
Seal Material	Nitrile	Weight	0.21 kg
Mounting Type	Screw-in Cartridge	Operation Type	Automatic
Filter Efficiency Rating	ISO 4406 18/16/13	Configuration	Selector
For Fluid Type	Synthetic Hydraulic Fluids	Function	Direct Acting Sequence
Drain Option	Internal	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Leak Rate	25 cm3/min @ 580 Psi (35 bar)	Cavity Size	C08-3
Pilot Location	Internal	Valve Material	Hardened Steel (all operating parts)
Installation Torque	30 lb-ft	Maximum Inlet Pressure Rating	6000 psi
Adjustment Mechanism	Screw	Maximum Pressure Setting	148 bar
Maximum Tank Pressure	6000 psi	Pressure Control Range	2 to 148 bar
Standard Setting Pressure	1100 psi	Pressure Control Sensitivity	22 bar Per Turn
Sealed Pilot Included	No
