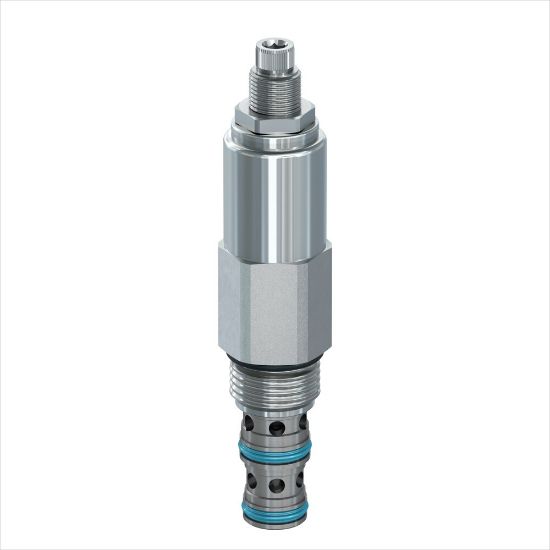

SV103S06V - Direct Acting Sequence Valve

Parker’s direct acting sequence valves can be piloted and vented allowing multiple actuators to work in sequence based on pressure settings; working with flows up to 56 lpm (15 gpm) and pressures up to 420 bar (6000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU SV103S06V

$126.59/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Fluorocarbon
Adjustment Mechanism	Screw	Sealed Pilot Included	No
Maximum Inlet Pressure Rating	3600 PSI, 250 BAR	Flow Rate	15 GAL/MIN, 56 L/MIN
Pressure Control Range	100-600 PSI, 6.9-42 BAR	Function	Direct Acting Sequence
Adjustment Mechanism	Screw	Cavity Size	C10-3
Minimum Operating Temperature	-26 °C	Mounting Type	Screw in cartridge valve
Flow Rate	15 Gal/min	Pressure Control Range	6.9-42 bar
Pressure Control Sensitivity	95 per turn psi	Operating Temperature	-15 to +400 °F
Actuation Type	Pressure Sensing	Drain Option	External
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Configuration	Normally Closed
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Maximum Operating Pressure	250 bar
Division	Hydraulic Systems Division	Body Material	N/A
Installation Torque	50-56 Nm	Weight	0.45 kg
Operation Type	Automatic	Pilot Location	Internal
Standard Setting Pressure	21 bar	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Operating Temperature	+400 °F	Valve Material	All parts steel. All operating parts hardened steel
Maximum Pressure Setting	600 psi	Leak Rate	82 @ 3000 PSI (210 BAR) cm3/min
Maximum Flow Rate	15 Gal/min	Sealed Pilot Included	No
Maximum Inlet Pressure Rating	250 bar	Seal Material	Fluorocarbon
Maximum Tank Pressure	250 bar
