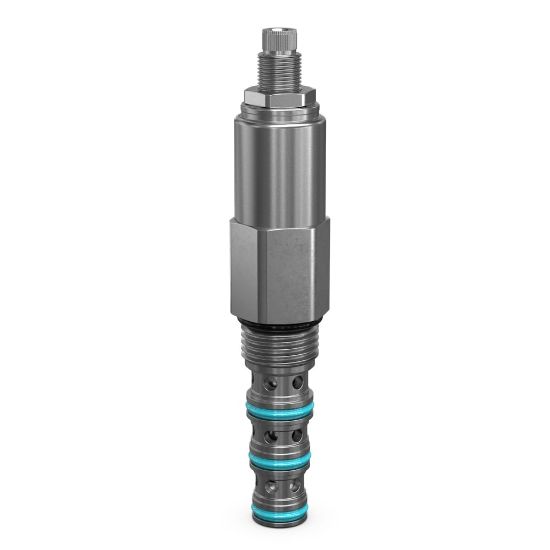

SV104S20 - Direct Acting Sequence Valve

Parker’s direct acting sequence valves can be piloted and vented allowing multiple actuators to work in sequence based on pressure settings; working with flows up to 56 lpm (15 gpm) and pressures up to 420 bar (6000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	1 Limited Stock

SKU SV104S20

$177.28/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Adjustment Mechanism	Screw
Flow Rate	8 GAL/MIN, 30 L/MIN	Seal Material	D-Ring (Standard)
Sealed Pilot Included	No	Maximum Inlet Pressure Rating	3600 PSI, 250 BAR
Pressure Control Range	400-2000 PSI, 28-138 BAR	Function	Direct Acting Sequence
Maximum Inlet Pressure Rating	3600 psi	Maximum Tank Pressure	3600 psi
Adjustment Mechanism	Screw	Minimum Operating Temperature	-37 °C
Cavity Size	C10-4	Mounting Type	Screw in cartridge valve
Pressure Control Range	400-2000 psi	Pressure Control Sensitivity	17.2 per turn bar
Flow Rate	30 L/min	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Weight	0.45 kg	Maximum Operating Pressure	3600 psi
Configuration	Normally Open	Actuation Type	Pressure Sensing
Pilot Location	External	Drain Option	External
Operating Temperature	-37 to +93 °C	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Operation Type	Automatic	Installation Torque	37-41 lb-ft
Division	Hydraulic Systems Division	Body Material	N/A
Standard Setting Pressure	1000 psi	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Flow Rate	30 L/min	Sealed Pilot Included	No
Valve Material	All parts steel. All operating parts hardened steel	Seal Material	D-Ring (Standard)
Maximum Operating Temperature	+93 °C	Leak Rate	82 @ 3000 PSI (210 BAR) cm3/min
Maximum Pressure Setting	138 bar
