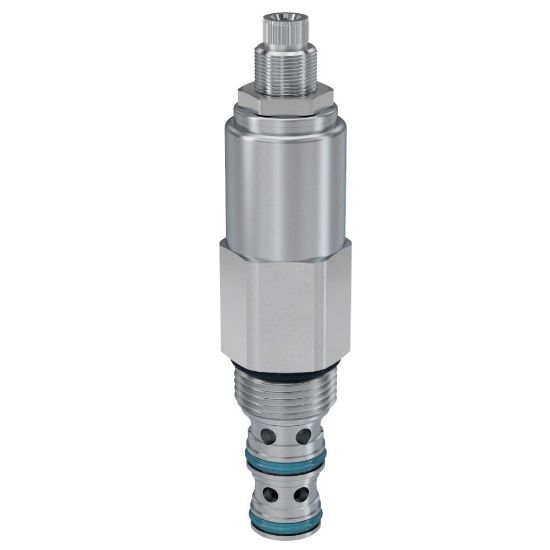

SV105K06 - Direct Acting Sequence Valve

Parker’s direct acting sequence valves can be piloted and vented allowing multiple actuators to work in sequence based on pressure settings; working with flows up to 56 lpm (15 gpm) and pressures up to 420 bar (6000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU SV105K06

$138.77/each

Products specifications

Attribute name	Attribute value
UOM	EA	Adjustment Mechanism	Knob
Seal Material	D-Ring (Standard)	Sealed Pilot Included	No
Flow Rate	10 GAL/MIN, 38 L/MIN	Maximum Inlet Pressure Rating	3600 PSI, 250 BAR
Pressure Control Range	100-600 PSI, 6.9-42 BAR	Standard Setting Pressure	21 bar
Division	Hydraulic Systems Division	Operation Type	Automatic
Installation Torque	37-41 lb-ft	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Sealed Pilot Included	No	Maximum Operating Temperature	+200 °F
Leak Rate	82 @ 3000 PSI (210 BAR) cm3/min	Maximum Pressure Setting	42 bar
Maximum Flow Rate	10 Gal/min	Valve Material	All parts steel. All operating parts hardened steel
Seal Material	D-Ring (Standard)	Maximum Tank Pressure	250 bar
Function	Direct Acting Sequence	Maximum Inlet Pressure Rating	3600 psi
Mounting Type	Screw in cartridge valve	Adjustment Mechanism	Knob
Minimum Operating Temperature	-35 °F	Cavity Size	C10-3
Flow Rate	10 Gal/min	Pressure Control Sensitivity	6.6 per turn bar
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Operating Temperature	-37 to +93 °C
Pressure Control Range	6.9-42 bar	Actuation Type	Pressure Sensing
Pilot Location	External	Drain Option	Internal
Body Material	N/A	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Maximum Operating Pressure	250 bar	Weight	1 lb
Configuration	Normally Closed
