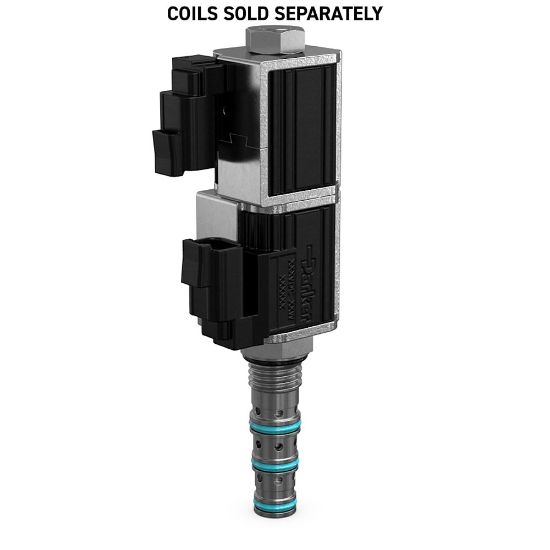

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

DSP105C1M - Directional Control Proportional Valves

Parker’s family of 3-position, 4-way proportional directional control valves come standard with closed or float center spools and are capable of flows up to 32 lpm (8.5 gpm) and pressures as high as 350 bar (5000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	Backordered

SKU DSP105C1M

$194.11/each

Products specifications

Attribute name	Attribute value
UOM	EA	Configuration	Normally Closed
Seal Material	D-Ring (Standard)	Maximum Inlet Pressure Rating	3000 PSI, 210 BAR
Flow Rate	8.5 GAL/MIN, 32 L/MIN	Override Functionality	Push and Pull
Variation of Opening Point	25% - 30% of Input Signal	Operating Temperature	-37 to +93 °C
Flow Rate	32 L/min	Configuration	Normally Closed
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Override Functionality	Push and Pull
Division	Hydraulic Systems Division	Operation Type	Solenoid operated, Manually operated
Installation Torque	25 lb-ft	Flow Rate Accuracy	+/- 15% @ 75% Nominal Current and Constant DeltaP Maintained with Pressure Compensator
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Actuation Type	Electrical, Manual
Body Material	N/A	Weight	0.28 kg
Coil Nut Tightening Torque	3 lb-ft	Maximum Operating Pressure	210 bar
Maximum Inlet Pressure Rating	210 bar	Leak Rate	10 @ 3000 PSI (210 BAR) cm3/min
Hysteresis	Less than 6%	Maximum Operating Temperature	+200 °F
Valve Material	All parts steel. All operating parts hardened steel	Seal Material	D-Ring (Standard
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Frequency	100-400 Hz
Coil Type	5/8" Super Coil High Watt (CAP)	Maximum Flow Rate	8.5 Gal/min
Current	2.33 @ 12 VDC, 1.17 @ 24 VDC A	Power Consumption	28 W
Cavity Size	C10-4	Minimum Operating Temperature	-35 °F
Function	Proportional Directional Control	Maximum Tank Pressure	210 bar
Response Time	50 ms
