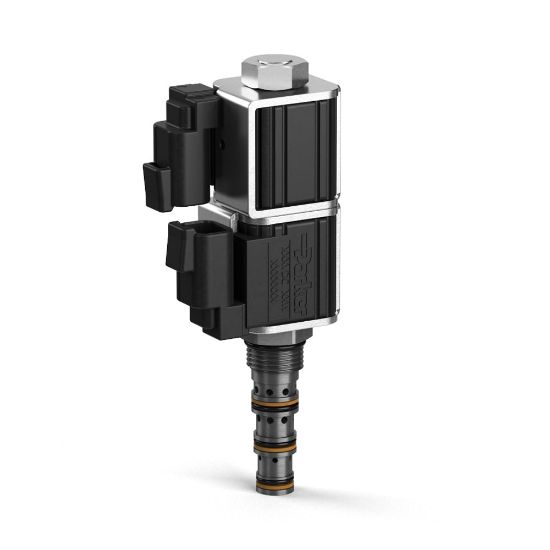

GP0251V - Directional Control Proportional Valves

Parker’s family of 3-position, 4-way proportional directional control valves come standard with closed or float center spools and are capable of flows up to 32 lpm (8.5 gpm) and pressures as high as 350 bar (5000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	Backordered

SKU GP0251V

$203.51/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Fluorocarbon
Configuration	Normally Closed	Override Functionality	N/A
Maximum Inlet Pressure Rating	5000 PSI, 350 BAR	Flow Rate	4, 4.5 GAL/MIN, 15, 17 L/MIN
Division	Hydraulic Systems Division	Operating Temperature	-26 to +204 °C
Flow Rate	15, 17 L/min	Actuation Type	Electrical
Maximum Flow Rate	4, 4.5 Gal/min	Power Consumption	14, 19 W
Maximum Operating Pressure	350 bar	Maximum Operating Temperature	+400 °F
Minimum Operating Temperature	-26 °C	Body Material	N/A
Seal Material	Fluorocarbon	Weight	0.34 lb
Operation Type	Solenoid operated	Current	1.15 @ 12 VDC, 1.58 @ 12 VDC, 0.58 @ 24 VDC, 0.79 @ 24 VDC A
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Configuration	Normally Closed
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Hysteresis	Less than 6%
Frequency	100-400 Hz	Function	Proportional Directional Control
Coil Type	1/2" Super Coil	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Leak Rate	10 @ 3000 PSI (210 BAR) cm3/min	Cavity Size	C08-4
Valve Material	All parts steel. All operating parts hardened steel	Installation Torque	22 lb-ft
Maximum Inlet Pressure Rating	350 bar	Override Functionality	N/A
Response Time	50 ms	Flow Rate Accuracy	+/- 15% @ 75% Nominal Current and Constant DeltaP Maintained with Pressure Compensator
Maximum Tank Pressure	3000 psi	Coil Nut Tightening Torque	3 lb-ft
Variation of Opening Point	25% - 30% of Input Signal
