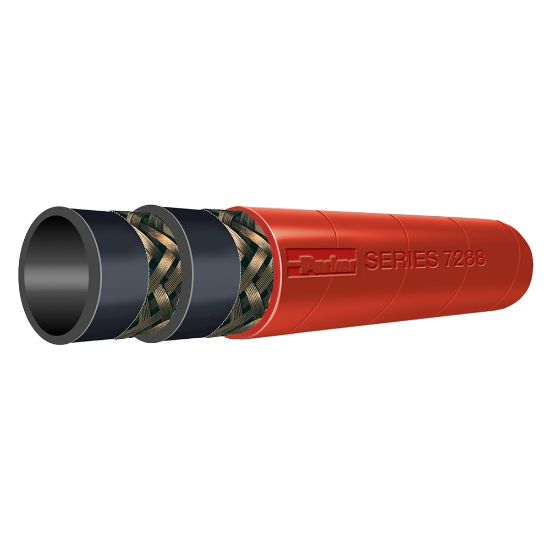

7288-752 - DRAGON BREATH® 250 Oil Resistant Steam Hose, Series 7288

Name: 7288-752 - DRAGON BREATH® 250 Oil Resistant Steam Hose, Series 7288
SKU: 7288-752
Price: 15.90 USD
Availability: InStock

Dragon Breath® 250 Oil Resistant Steam Hose is designed for steam applications to 406°F for saturated steam at 261 psi and 450° for superheated steam at 250 psi, Series 7288

Manufacturer: Parker

Availability:

87 in stock

Olivette, MO

Partner Available:

Backordered

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 7288-752

$15.90/foot

Qty:

Products specifications

Attribute name	Attribute value
UOM	FT	Standard Pack Qty (ft)	50
Hose I.D. (inch)	3/4	Maximum Working Pressure (psi)	250
Media	Steam (Saturated)	Maximum Operating Temperature	207 °C (Saturated Steam)
Hose Inner Tube Material	Black	Application	Steam
Specifications Met	ISO 6134, Type 2	Hose Reinforcement Material	2 Braids of Wire
Cover Structure	Perforated	Minimum Bend Radius	241.3 mm
Cover Material	ARPM Class B Oil Resistance	Minimum Operating Temperature	-20 °F
Inside Diameter	3/4 inch	Weight	0.33 kg
Maximum Operating Pressure	250 bar (Superheated Steam)	Package Type	Carton
Outside Diameter	1.343 inch	Division	Hose Products Division
Cover Color	Red

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
