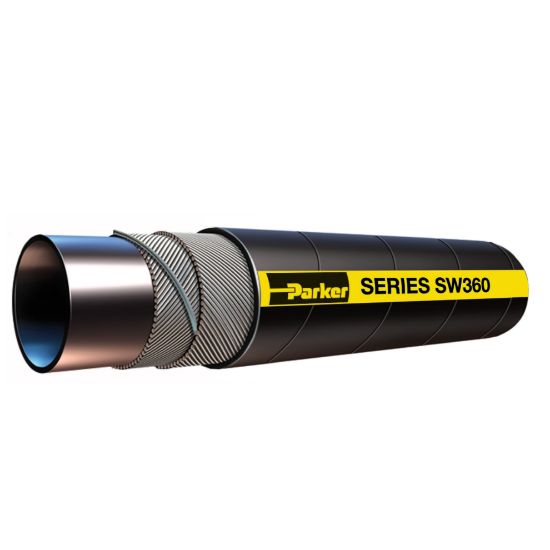

SW360-6000 - DRAGON BREATH® HOT AIR HOSE, SERIES SW360

Dragon Breath® Hot Air Hose is designed for hot air transfer in dry material loading/unloading applications to 350°F and 200 psi, Series SW360

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 106 days
Partner Available:	Backordered

SKU SW360-6000

$98.29/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Maximum Working Pressure (psi)	100
Hose I.D. (inch)	6	Division	Hose Products Division
Application	Multipurpose	Media	Air (Hot Air)
Maximum Operating Pressure	100 psi	Maximum Operating Temperature	350 °F
Minimum Operating Temperature	-40 °C	Weight	5 lb
Tube Material	Ethylene Propylene Diene Monomer (EPDM)	Outside Diameter	6.813 inch
Cover Material	Ethylene Propylene Diene Monomer (EPDM)	Inside Diameter	152.4 mm
Minimum Bend Radius	609.6 mm	Vacuum Pressure Rating	Full
Hose Inner Tube Material	Black	Hose Reinforcement Material	Multiple Plies of Textile with Dual Wire Helix
Cover Color	Black	Design Factor	4:1
Package Type	Coil	Length per Package	100 ft
Cover Structure	Wrapped
