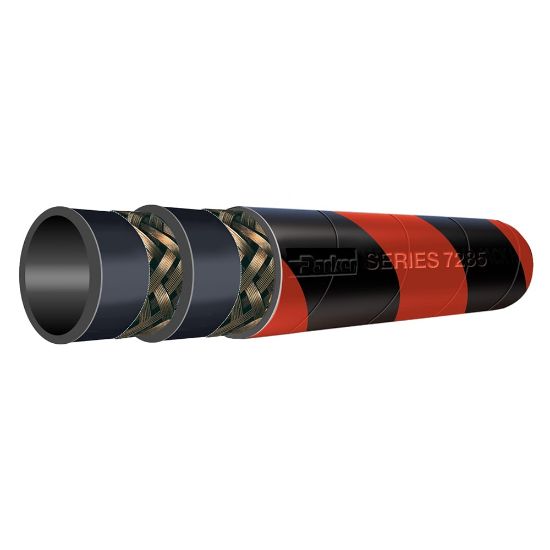

7285-1002 - DRAGON BREATH® II Barber Pole Steam Hose, Series 7285

Name: 7285-1002 - DRAGON BREATH® II Barber Pole Steam Hose, Series 7285
SKU: 7285-1002
Price: 19.41 USD
Availability: InStock

Dragon Breath® II Barber Pole Steam Hose is designed for steam applications to 406°F for saturated steam at 261 psi and 450° for superheated steam at 250 psi, Series 7285

Manufacturer: Parker

Availability:

309 in stock

Joplin, MO	300
Olivette, MO	9

Partner Available:

170 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 7285-1002

$19.41/foot

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1
Minimum Operating Temperature	-40 °F	Minimum Bend Radius	12 inch
Hose Reinforcement Material	Multiple Braids of Wire	Specifications Met	ISO 6134, Type 2
Cover Material	Ethylene Propylene Diene Monomer (EPDM)	Outside Diameter	39.3 mm
Maximum Operating Pressure	18 bar	Weight	1.21 kg/m
Inside Diameter	25.4 mm	Application	Industrial
Division	Hose Products Division	Cover Color	Black & Red
Media	Steam	Maximum Operating Temperature	450 °F (Superheated Steam)
Hose Inner Tube Material	Chlorobutyl

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
