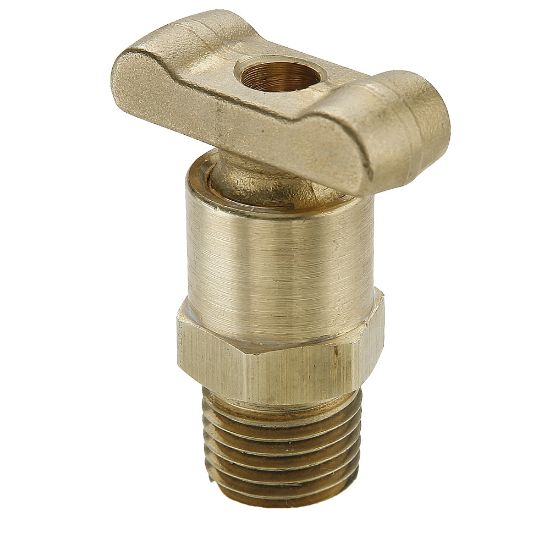

DC603-4 - Drain Cocks

Parker's economical drain cocks are manufactured in both external and internal seats for low pressure applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	69 in stock

SKU DC603-4

$15.14/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Internal Seal
Connection 1 Thread Size (inch)	1/4	Connection 1 Style	Male Pipe
Connection 2 Style	na	Connection 2 Thread Size (inch)	na
Connection 1 Hose I.D. (inch)	na	Handle	Brass Wing
Division	Fluid System Connectors Division	Maximum Operating Temperature	121 °C
Minimum Operating Temperature	-54 °C	Maximum Operating Pressure	10 bar
Body Material	Brass	Dimensional Weight	0.11037769784172662 lb
