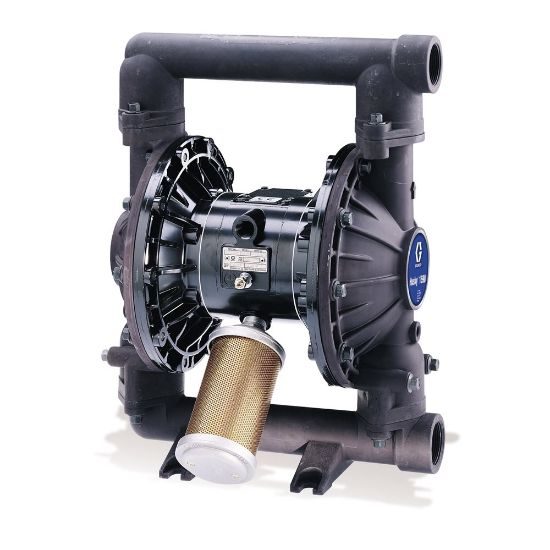

DT5311

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU DT5311

Products specifications

Attribute name	Attribute value
UOM	EA	Type	Pneumatic
Ball Material	PTFE	Maximum Flow Rate	100 GPM
Material	PVDF	Seat Material	Stainless Steel
Series	1590	Diaphragm Material	PTFE/EPDM 2-Piece
Fluid Outlet Thread Gender	Female	Fluid Inlet Thread Gender	Female
Fluid Outlet Size	1-1/2 Inch	Diaphragm Compatible Material	PTFE
Air Inlet Thread Type	NPT	Fluid Inlet Size	1-1/2 Inch
Air Inlet Thread Gender	Female	Center Section Material	Stainless Steel
Model	Husky	Air Inlet Size	1/2 Inch
Maximum Operating Temperature	150 deg F	Maximum Cycle Rate	200 CPM
Maximum Air Consumption	125 SCFM	Manifold Configuration	End Port
Maximum Solid Size	0.1875 Inch
