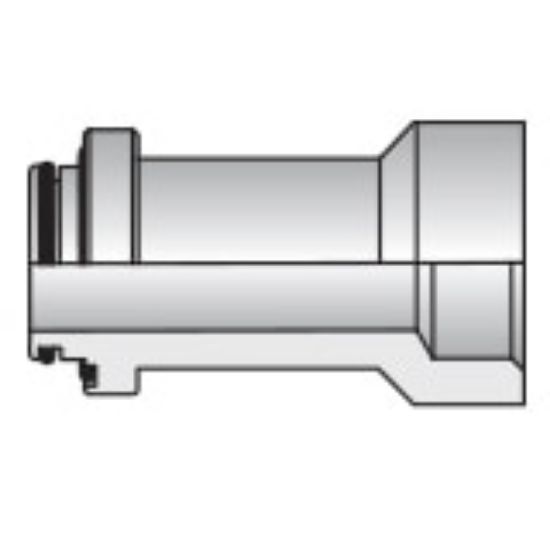

24 W7HQ4O-SS - Dual Seal Subsea Flange Adapters

Parker's Dual Seal Flange Adapter product line provides a solution for subsea high-vibration and shock situations.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 75 days
Partner Available:	Backordered

SKU 24 W7HQ4O-SS

$525.27/each

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Straight
Connection Tube O.D. (inch)	na	Connection Style	Female Socket Weld Pipe
Flange Size (inch)	1 1/2	Connection Thread Size (inch)	1 1/2
Specifications Met	NACE MR0175, ISO 6162-2 and SAE J518 Code 62	O-Ring Material	90 Durometer Nitrile
Maximum Dynamic Pressure	7500 psi	Division	Tube Fittings Division
Body Material	Stainless Steel

Product resources

Literature and Reference Materials

Parker Dual Seal Flange Adapters (PDF)
