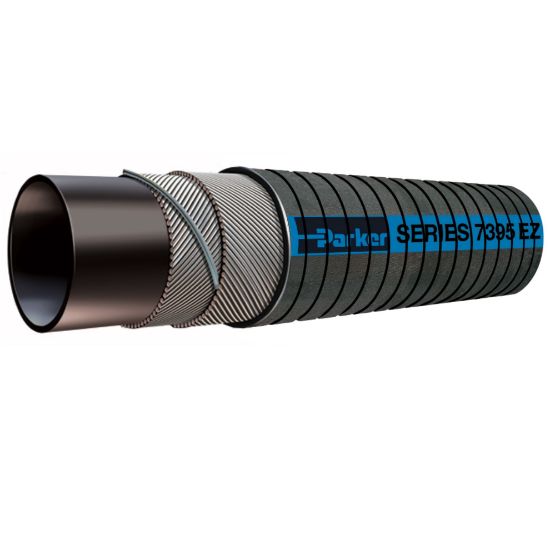

7395-1750025 - E-Z Form GS Suction Hose, General Service, Series 7395

E-Z Form GS Greek Corrugated General Service Suction Hose is flexible hose designed for transfer of air, coolant, mild chemicals and water in industrial and mobile applications to 257°F and 75 psi, Series 7395

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	4 in stock

SKU 7395-1750025

$34.81/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Standard Pack Qty (ft)	25
Maximum Working Pressure (psi)	75	Hose I.D. (inch)	1-3/4
Outside Diameter	56 mm	Package Type	Coil
Application	Engine	Hose Reinforcement Material	2 Plies of Textile with Wire Helix
Specifications Met	SAE J20R2, Class D1, UL94 Flame Resistance Rating HB	Cover Color	Black
Vacuum Pressure Rating	29 Inch-Hg	Inside Diameter	1-3/4 inch
Maximum Operating Pressure	5 bar	Weight	0.68 lb/ft
Compatible Fitting	n/a	Hose Inner Tube Material	Black
Design Factor	4:1	Maximum Operating Temperature	257 °F
Division	Hose Products Division	Cover Material	Ethylene Propylene Diene Monomer (EPDM)
Cover Structure	Greek-Corrugated	Minimum Bend Radius	4 inch
Minimum Operating Temperature	-45.6 °C	Media	Mild Chemicals - Check your fluid compatibility with our catalogue chart.
