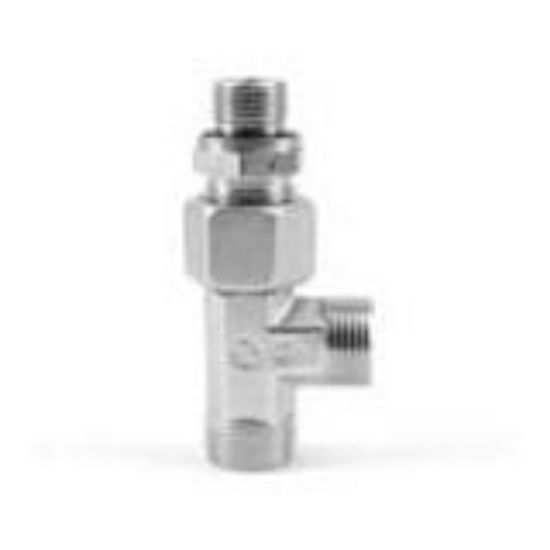

EL18ZLREDCF

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 29 days
Partner Available:	3 in stock

SKU EL18ZLREDCF

Products specifications

Attribute name	Attribute value
UOM	EA	Application	Chemical Transfer
Accessories Included	Pre-Assembled with EO-2 Functional Nut, Pre-Assembled with EO-2 Functional Nut	Connection 3 Size	G 1/2 inch Thread
Connection 1 Size	18 mm Tube	Material	Steel
Connection 3 Type	Male BSPP	Standard	ISO 1179
For Fluid Type	Hydraulic Fluids	Shape	Run Tee
Connection 2 Size	18 mm Tube	Technology	Fluid & Gas Handling
Connection 1 Type	Male 24° Cone	Minimum Fluid Temperature	-58 °F
O-Ring/Seal Material	NBR	Maximum Fluid Temperature	120 °C
Connection 2 Type	Male 24° Cone	Configuration	Tube to Swivel
Product Series	EO Light	Maximum Ambient Temperature	320 °F
Seal Type	ED Seal	Minimum Ambient Temperature	-50 °C
Product Type	Hydraulic Fittings
