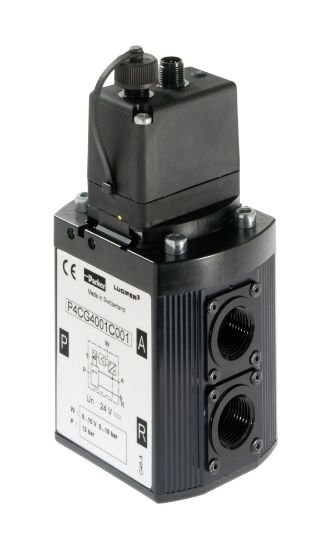

P4CG4001C001 - Electronic Proportional Regulators - EPP4 Series

EPP4 programmable electronic proportional regulator allows for regulation of outlet pressure proportionally to an electrical control signal. This unit utilizes a user friendly Calys software to configure all parameters.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 106 days
Partner Available:	Backordered

SKU P4CG4001C001

$1,859.31/each

Products specifications

Attribute name	Attribute value
UOM	EA	Thread Type	BSP
Port Size	1/2"	Weight	6.3 lb
Ingress Protection Rating	NEMA 4	Inlet Pressure Rating	0 to 10.5 bar
Pressure Control Range	0 to 10.5 bar	Operating Temperature	32° to 140° °F
Port Type	BSP	Configuration	Software Programmable
Port Size	1/2"	Product Type	Electronic Proportional Regulator (pulse width modulated)
Media	40μ Filtered compressed air \| Inert gas	Response Time	Filling: 20 / Emptying: 20 ms
Power Consumption	1.2 \| 1.6 \| 1.8 \| 2.4 W	Input Voltage	24VDC \| 12VDC \| 24VAC \| 120/110VAC
Display Type	N/A	Division	Pneumatic Division
Maximum Flow Rate	70 \| 150 m3/hour	Electrical Connection	M23 Mini; 6-Pin \| M12 Micro; 6-Pin \| Conduit
Control Method	8-pin M12 & 5-pin M12
