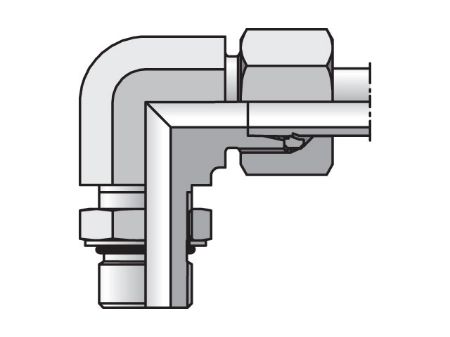

EO/EO-2 90° Elbow, Adjustable - WEE-UNF
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker EO and EO-2 metric flareless bite type tube fittings have become the "world standard' for many industrial manufacturers requiring dependable leak free hydraulic tube fittings. The EO progressive ring (ferrule) has two cutting edges that bite the tube outer diameter. EO-2 fittings incorporate elastomeric seals on all joints to insure leak free systems.
Read More...| Action | SKU | Availability | Partner Available | Price | UOM | UOM | O-Ring/Seal Material | Material | End 2 | Pkg Qty | Pressure Series | End 1 | Pressure Rating | Inch/Metric | Parker Division | Trade Name | Pressure Series | Pressure Rating | Tube Fitting/Adapter Type | Series | Configuration Sub-Type | Material | Configuration Type | End 2 Type | End 2 | O-Ring/Seal Material | End 1 Type | End 1 | Parker Group | EO-2 Seal | EO-2 Seal |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WEE06L7/16UNFCF | Backordered | Backordered | $32.89/each | EA | EA | Nitrile | Steel | 7/16-20 UN/UNF-2A | 20 | Light | 6 mm | 315 bar | Metric | Tube Fitting | EO/EO-2 | Light | 315 bar | Bite Type, EO/EO-2 Flareless | EO | Adjustable - 24° Flareless / SAE-ORB | Steel | 90° Elbow | UN/UNF-2A | 7/16-20 UN/UNF-2A | Nitrile | mm | 6 mm | Fluid Connector | |||
| WEE06ZL7/16UNFCF | Backordered | 1 Limited Stock | $45.77/each | EA | EA | Nitrile | Steel | 7/16-20 UN/UNF-2A | 20 | Light | 6 mm | 315 bar | Metric | Tube Fitting | EO/EO-2 | Light | 315 bar | Bite Type, EO/EO-2 Flareless | EO-2 | Adjustable - 24° Flareless / SAE-ORB | Steel | 90° Elbow | UN/UNF-2A | 7/16-20 UN/UNF-2A | Nitrile | mm | 6 mm | Fluid Connector | Nitrile | Nitrile | |
| WEE08L7/16UNFCF | Backordered | Backordered | POR | EA | EA | Nitrile | Steel | 7/16-20 UN/UNF-2A | 20 | Light | 8 mm | 315 bar | Metric | Tube Fitting | EO/EO-2 | Light | 315 bar | Bite Type, EO/EO-2 Flareless | EO | Adjustable - 24° Flareless / SAE-ORB | Steel | 90° Elbow | UN/UNF-2A | 7/16-20 UN/UNF-2A | Nitrile | mm | 8 mm | Fluid Connector | |||
| WEE08S9/16UNFCF | Backordered | Backordered | POR | EA | EA | Nitrile | Steel | 9/16-18 UN/UNF-2A | 15 | Heavy | 8 mm | 400 bar | Metric | Tube Fitting | EO/EO-2 | Heavy | 400 bar | Bite Type, EO/EO-2 Flareless | EO | Adjustable - 24° Flareless / SAE-ORB | Steel | 90° Elbow | UN/UNF-2A | 9/16-18 UN/UNF-2A | Nitrile | mm | 8 mm | Fluid Connector | |||
| WEE08ZL7/16UNFCF | Backordered | 7 in stock | $52.18/each | EA | EA | Nitrile | Steel | 7/16-20 UN/UNF-2A | 20 | Light | 8 mm | 315 bar | Metric | Tube Fitting | EO/EO-2 | Light | 315 bar | Bite Type, EO/EO-2 Flareless | EO-2 | Adjustable - 24° Flareless / SAE-ORB | Steel | 90° Elbow | UN/UNF-2A | 7/16-20 UN/UNF-2A | Nitrile | mm | 8 mm | Fluid Connector | Nitrile | Nitrile | |
| WEE08ZS9/16UNFCF | Backordered | Backordered | $87.40/each | EA | EA | Nitrile | Steel | 9/16-18 UN/UNF-2A | 1 | Heavy | 8 mm | 400 bar | Metric | Tube Fitting | EO/EO-2 | Heavy | 400 bar | Bite Type, EO/EO-2 Flareless | EO-2 | Adjustable - 24° Flareless / SAE-ORB | Steel | 90° Elbow | UN/UNF-2A | 9/16-18 UN/UNF-2A | Nitrile | mm | 8 mm | Fluid Connector | Nitrile | Nitrile | |
| WEE10L9/16UNFCF | Backordered | 4 in stock | $106.86/each | EA | EA | Nitrile | Steel | 9/16-18 UN/UNF-2A | 15 | Light | 10 mm | 315 bar | Metric | Tube Fitting | EO/EO-2 | Light | 315 bar | Bite Type, EO/EO-2 Flareless | EO | Adjustable - 24° Flareless / SAE-ORB | Steel | 90° Elbow | UN/UNF-2A | 9/16-18 UN/UNF-2A | Nitrile | mm | 10 mm | Fluid Connector | |||
| WEE12L3/4UNFCF | Backordered | Backordered | $73.11/each | EA | EA | Nitrile | Steel | 3/4-16 UN/UNF-2A | 10 | Light | 12 mm | 315 bar | Metric | Tube Fitting | EO/EO-2 | Light | 315 bar | Bite Type, EO/EO-2 Flareless | EO | Adjustable - 24° Flareless / SAE-ORB | Steel | 90° Elbow | UN/UNF-2A | 3/4-16 UN/UNF-2A | Nitrile | mm | 12 mm | Fluid Connector | |||
| WEE12L9/16UNFCF | Backordered | Backordered | $58.03/each | EA | EA | Nitrile | Steel | 9/16-18 UN/UNF-2A | 15 | Light | 12 mm | 315 bar | Metric | Tube Fitting | EO/EO-2 | Light | 315 bar | Bite Type, EO/EO-2 Flareless | EO | Adjustable - 24° Flareless / SAE-ORB | Steel | 90° Elbow | UN/UNF-2A | 9/16-18 UN/UNF-2A | Nitrile | mm | 12 mm | Fluid Connector | |||
| WEE12S3/4UNFCF | Backordered | Backordered | POR | EA | EA | Nitrile | Steel | 3/4-16 UN/UNF-2A | 10 | Heavy | 12 mm | 400 bar | Metric | Tube Fitting | EO/EO-2 | Heavy | 400 bar | Bite Type, EO/EO-2 Flareless | EO | Adjustable - 24° Flareless / SAE-ORB | Steel | 90° Elbow | UN/UNF-2A | 3/4-16 UN/UNF-2A | Nitrile | mm | 12 mm | Fluid Connector | |||
| WEE12ZL9/16UNFCF | Backordered | Backordered | POR | EA | EA | Nitrile | Steel | 9/16-18 UN/UNF-2A | 15 | Light | 12 mm | 315 bar | Metric | Tube Fitting | EO/EO-2 | Light | 315 bar | Bite Type, EO/EO-2 Flareless | EO-2 | Adjustable - 24° Flareless / SAE-ORB | Steel | 90° Elbow | UN/UNF-2A | 9/16-18 UN/UNF-2A | Nitrile | mm | 12 mm | Fluid Connector | Nitrile | Nitrile | |
| WEE15L3/4UNFCF | Backordered | Backordered | POR | EA | EA | Nitrile | Steel | 3/4-16 UN/UNF-2A | 10 | Light | 15 mm | 315 bar | Metric | Tube Fitting | EO/EO-2 | Light | 315 bar | Bite Type, EO/EO-2 Flareless | EO | Adjustable - 24° Flareless / SAE-ORB | Steel | 90° Elbow | UN/UNF-2A | 3/4-16 UN/UNF-2A | Nitrile | mm | 15 mm | Fluid Connector | |||
| WEE15L7/8UNFCF | Backordered | Backordered | $61.91/each | EA | EA | Nitrile | Steel | 7/8-14 UN/UNF-2A | 10 | Light | 15 mm | 315 bar | Metric | Tube Fitting | EO/EO-2 | Light | 315 bar | Bite Type, EO/EO-2 Flareless | EO | Adjustable - 24° Flareless / SAE-ORB | Steel | 90° Elbow | UN/UNF-2A | 7/8-14 UN/UNF-2A | Nitrile | mm | 15 mm | Fluid Connector | |||
| WEE15ZL3/4UNFCF | Backordered | Backordered | $88.61/each | EA | EA | Nitrile | Steel | 3/4-16 UN/UNF-2A | 10 | Light | 15 mm | 315 bar | Metric | Tube Fitting | EO/EO-2 | Light | 315 bar | Bite Type, EO/EO-2 Flareless | EO-2 | Adjustable - 24° Flareless / SAE-ORB | Steel | 90° Elbow | UN/UNF-2A | 3/4-16 UN/UNF-2A | Nitrile | mm | 15 mm | Fluid Connector | Nitrile | Nitrile | |
| WEE16S7/8UNFCF | Backordered | Backordered | $82.11/each | EA | EA | Nitrile | Steel | 7/8-14 UN/UNF-2A | 10 | Heavy | 16 mm | 400 bar | Metric | Tube Fitting | EO/EO-2 | Heavy | 400 bar | Bite Type, EO/EO-2 Flareless | EO | Adjustable - 24° Flareless / SAE-ORB | Steel | 90° Elbow | UN/UNF-2A | 7/8-14 UN/UNF-2A | Nitrile | mm | 16 mm | Fluid Connector | |||
| WEE18L11/16UNCF | Backordered | 10 in stock | $153.08/each | EA | EA | Nitrile | Steel | 1 1/16-12 UN/UNF-2A | 10 | Light | 18 mm | 315 bar | Metric | Tube Fitting | EO/EO-2 | Light | 315 bar | Bite Type, EO/EO-2 Flareless | EO | Adjustable - 24° Flareless / SAE-ORB | Steel | 90° Elbow | UN/UNF-2A | 1 1/16-12 UN/UNF-2A | Nitrile | mm | 18 mm | Fluid Connector | |||
| WEE18ZL7/8UNFCF | Backordered | Backordered | $291.29/each | EA | EA | Nitrile | Steel | 7/8-14 UN/UNF-2A | 10 | Light | 18 mm | 315 bar | Metric | Tube Fitting | EO/EO-2 | Light | 315 bar | Bite Type, EO/EO-2 Flareless | EO-2 | Adjustable - 24° Flareless / SAE-ORB | Steel | 90° Elbow | UN/UNF-2A | 7/8-14 UN/UNF-2A | Nitrile | mm | 18 mm | Fluid Connector | Nitrile | Nitrile | |
| WEE20S11/16UNCF | Backordered | 1 Limited Stock | $134.94/each | EA | EA | Nitrile | Steel | 1 1/16-12 UN/UNF-2A | 5 | Heavy | 20 mm | 400 bar | Metric | Tube Fitting | EO/EO-2 | Heavy | 400 bar | Bite Type, EO/EO-2 Flareless | EO | Adjustable - 24° Flareless / SAE-ORB | Steel | 90° Elbow | UN/UNF-2A | 1 1/16-12 UN/UNF-2A | Nitrile | mm | 20 mm | Fluid Connector | |||
| WEE22L11/16UNCF | Backordered | Backordered | $82.71/each | EA | EA | Nitrile | Steel | 1 1/16-12 UN/UNF-2A | 10 | Light | 22 mm | 160 bar | Metric | Tube Fitting | EO/EO-2 | Light | 160 bar | Bite Type, EO/EO-2 Flareless | EO | Adjustable - 24° Flareless / SAE-ORB | Steel | 90° Elbow | UN/UNF-2A | 1 1/16-12 UN/UNF-2A | Nitrile | mm | 22 mm | Fluid Connector | |||
| WEE22ZL11/16UNCF | Backordered | Backordered | $81.86/each | EA | EA | Nitrile | Steel | 1 1/16-12 UN/UNF-2A | 10 | Light | 22 mm | 160 bar | Metric | Tube Fitting | EO/EO-2 | Light | 160 bar | Bite Type, EO/EO-2 Flareless | EO-2 | Adjustable - 24° Flareless / SAE-ORB | Steel | 90° Elbow | UN/UNF-2A | 1 1/16-12 UN/UNF-2A | Nitrile | mm | 22 mm | Fluid Connector | Nitrile | Nitrile |
