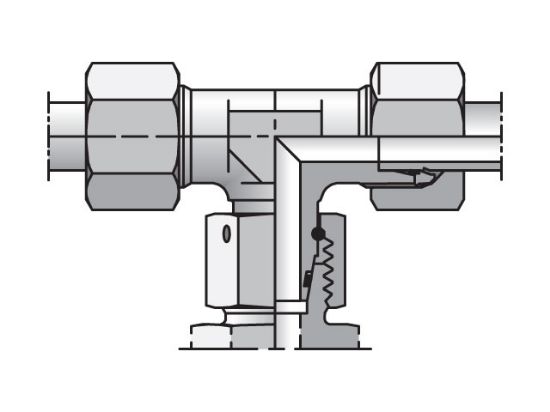

ET15ZL71 - EO/EO-2 Tee, Swivel Nut Branch - ET

EO/EO-2 Tee, Swivel Nut Branch - 24° Flareless / 24° Flareless / Flareless Swivel

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU ET15ZL71

$360.43/each

Products specifications

Attribute name	Attribute value
UOM	EA	Pressure Series	Light
End 3	M22 x 1.5 Metric	EO-2 Seal	Fluorocarbon
Material	Stainless Steel	End 2	15 mm
UOM	EA	End 1	15 mm
Pkg Qty	2	Pressure Rating	315 bar
Parker Division	Tube Fitting	EO-2 Seal	Fluorocarbon
Inch/Metric	Metric	End 2	15 mm
End 2 Type	mm	Parker Group	Fluid Connector
End 3 Type	Metric	End 1 Type	mm
Trade Name	EO/EO-2	Pressure Rating	315 bar
Pressure Series	Light	End 3	M22 x 1.5 Metric
Material	Stainless Steel	End 1	15 mm
Configuration Sub-Type	Swivel Nut Branch - 24° Flareless / 24° Flareless / Flareless Swivel	Configuration Type	Tee
Tube Fitting/Adapter Type	Bite Type, EO/EO-2 Flareless	Series	EO-2
