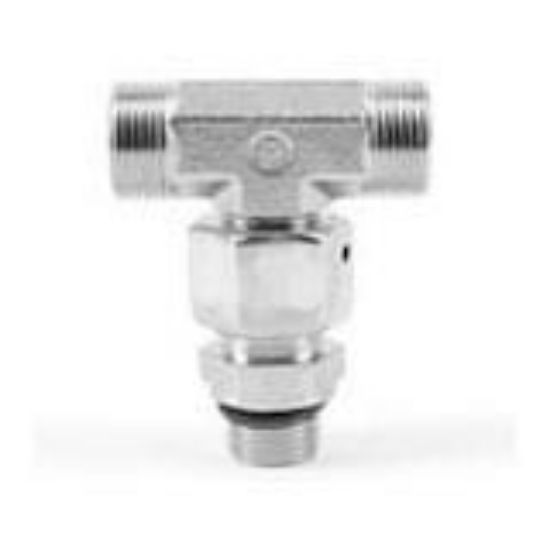

ET08LMEDCF

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 29 days
Partner Available:	Backordered

SKU ET08LMEDCF

Products specifications

Attribute name	Attribute value
UOM	EA	Application	Chemical Transfer
Material	Steel	Standard	ISO 8343
For Fluid Type	Hydraulic Fluids	Connection 1 Size	8 mm Tube
Technology	Fluid & Gas Handling	Connection 2 Size	8 mm Tube
Connection 3 Type	Male Metric	Connection 3 Size	M12x1.5 mm Thread
Shape	Branch Tee	Accessories Included	Pre-Assembled with Nut and EO-PSR Cutting Ring, Pre-Assembled with Nut and EO-PSR Cutting Ring
Connection 2 Type	Male 24° Cone	Maximum Fluid Temperature	120 °C
O-Ring/Seal Material	NBR	Maximum Ambient Temperature	320 °F
Seal Type	ED Seal	Product Type	Hydraulic Fittings
Product Series	EO Light	Configuration	Tube to Swivel
Minimum Ambient Temperature	-50 °C	Connection 1 Type	Male 24° Cone
Minimum Fluid Temperature	-50 °C
