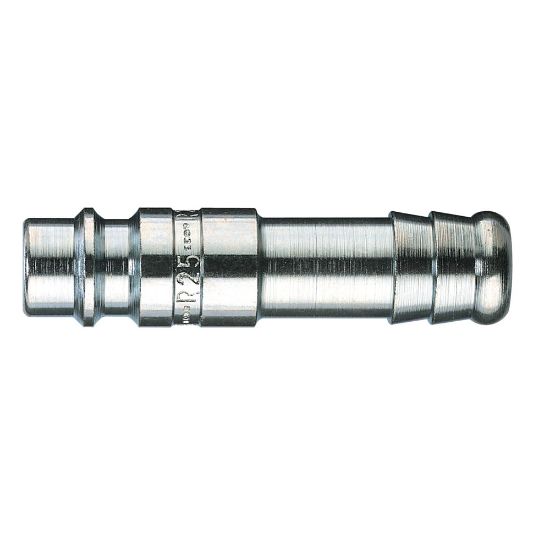

25SFTF06SXZ - European Interchange, High Flow, Quick Connect Air Couplings - Rectus 25 Series

Parker's high flow quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered
Partner Available:	10 in stock

SKU 25SFTF06SXZ

$15.40/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Hose I.D. (inch)	1/4
Body Size (inch)	1/4	Connection Thread Size (inch)	na
Connection Type	Hose barb	Thread Style	na
Coupling Half	Nipple	Interchange Type	European High Flow
Body Material	Steel	Maximum Operating Pressure	300 psi
Division	Quick Coupling Division	Application	Air
Media	Low pressure fluids and compressed air	Plating Type	Zinc with clear trivalent chromate
Minimum Operating Temperature	-4.0 °F	Valve Type	Unvalved
Division	Quick Coupling Division	Maximum Operating Temperature	212.0 °F
