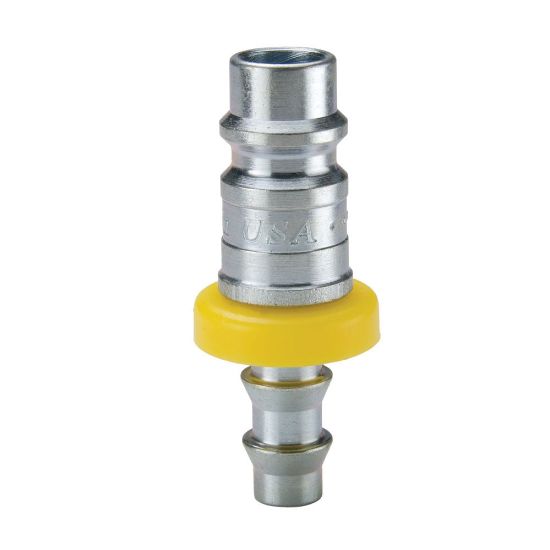

25SFTP06SXN - European Interchange, High Flow, Quick Connect Air Couplings - Rectus 25 Series

Parker's high flow quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 115 days
Partner Available:	Backordered

SKU 25SFTP06SXN

$11.91/each

Products specifications

Attribute name	Attribute value
UOM	EA	Hose I.D. (inch)	1/4
Body Size (inch)	1/4	Connection Thread Size (inch)	na
Connection Type	Push-Lok hose barb	Thread Style	na
Coupling Half	Nipple	Application	Air
Maximum Operating Pressure	300 psi	Interchange Type	European High Flow
Plating Type	Zinc with clear trivalent chromate	Minimum Operating Temperature	-4.0 °F
Maximum Operating Temperature	212.0 °F	Media	Low pressure fluids and compressed air
Body Material	Steel	Division	Quick Coupling Division
Valve Type	Unvalved	Division	Quick Coupling Division

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
