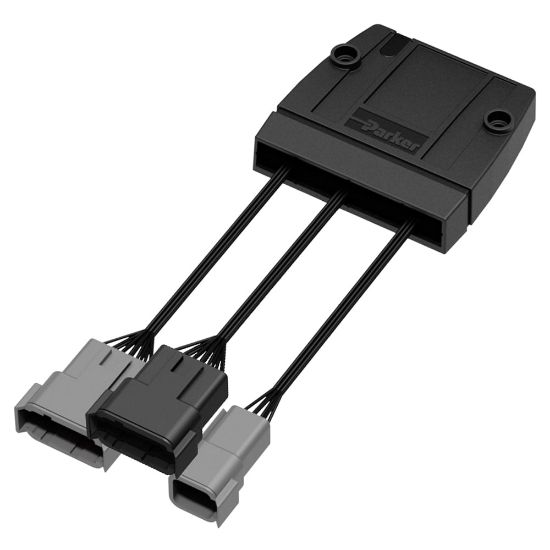

20077792 - Expansion controllers - IQAN-XC21/XC22/XC23

Parker's IQAN-XC21/XC22/XC23 expansion modules can be added to an IQAN system to increase I/O. They have voltage, digital, PWM and frequency inputs. The outputs are digital. The modules communicate with an IQAN master module over a CAN bus connection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	17 in stock

SKU 20077792

$925.63/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Model Number	IQAN-XC23
Power Supply Voltage	9 to 32 VDC	Number of Outputs	8
Housing Material	Plastic	Electrical Connection	Deutsch DTM
Maximum Operating Temperature	70 °C	Specifications Met	2004/108/EC
Output Current Rating	300 mA	Minimum Operating Temperature	-30 °C
Controller Type	Slave/Expansion Module	Number of Inputs	20
Division	Electronic Motion and Controls Division	Industry	Construction
Ingress Protection Rating	66
