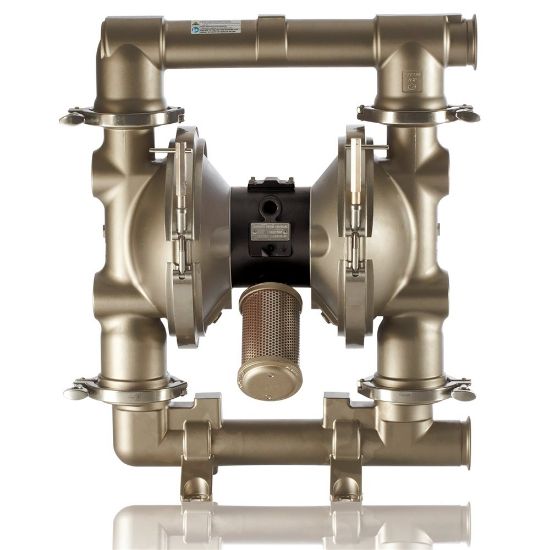

FA7111

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU FA7111

Products specifications

Attribute name	Attribute value
UOM	EA	Type	Pneumatic
Connection Type	DIN	Air Exhaust Port Thread Gender	Female
Seat Material	316L Stainless Steel	Material	Stainless Steel
Series	1040	For Use With	Food and Personal Care
Maximum Flow Rate	41 GPM	Ball Material	PTFE
Model	SaniForce	Pump Ratio	1:1
Diaphragm Compatible Material	PTFE	Maximum Air Consumption	50 SCFM
Air Inlet Size	1/2 Inch	Air Exhaust Port Thread Type	NPT
Fluid Inlet Size	1 Inch	Maximum Solid Size	0.125 Inch
Air Inlet Thread Type	NPT	Manifold Configuration	End Port
Fluid Outlet Size	1 Inch	Diaphragm Material	PTFE
Center Section Material	Aluminum	Air Exhaust Port Size	3/4 Inch
Air Inlet Thread Gender	Female	Maximum Cycle Rate	256 CPM
