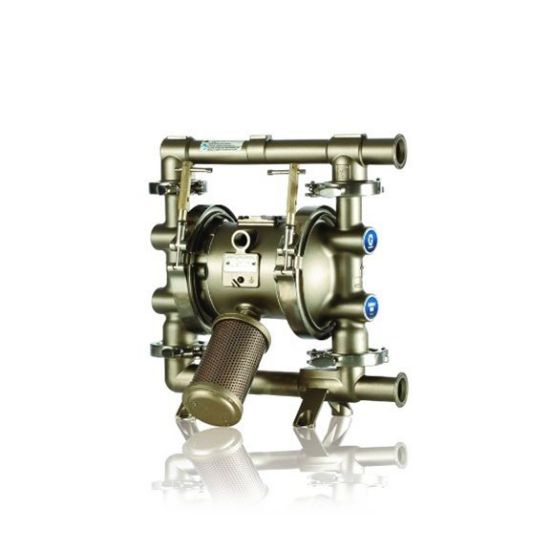

FD1132

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU FD1132

Products specifications

Attribute name	Attribute value
UOM	EA	Air Exhaust Port Thread Gender	Female
Seat Material	316L Stainless Steel	Material	Stainless Steel
Series	1040	Connection Type	Tri-Clamp
Maximum Flow Rate	41 GPM	Ball Material	Polychloroprene Weighted
Type	Pneumatic	For Use With	Food and Personal Care
Fluid Inlet Size	1 Inch	Diaphragm Material	Santoprene
Pump Ratio	1:1	Maximum Solid Size	0.125 Inch
Manifold Configuration	End Port	Air Inlet Size	1/2 Inch
Air Exhaust Port Thread Type	NPT	Maximum Cycle Rate	256 CPM
Air Inlet Thread Gender	Female	Diaphragm Compatible Material	Santoprene
Fluid Outlet Size	1 Inch	Air Inlet Thread Type	NPT
Model	SaniForce	Maximum Air Consumption	50 SCFM
Air Exhaust Port Size	3/4 Inch
