*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

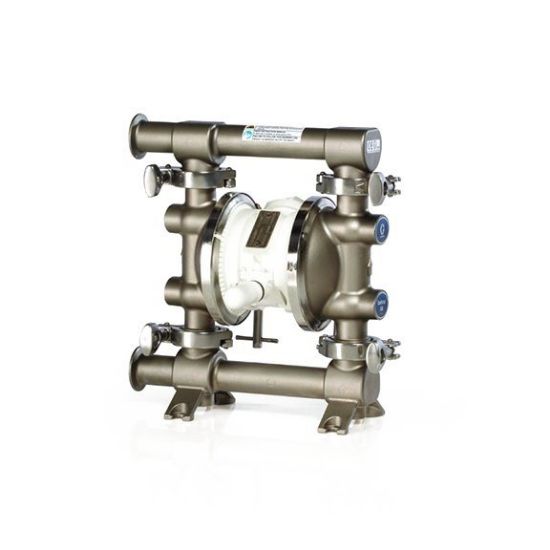

FD6113

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU FD6113

Products specifications

Attribute name	Attribute value
UOM	EA	Ball Material	PTFE
Seat Material	316L Stainless Steel	For Use With	Food and Personal Care
Maximum Flow Rate	16 GPM	Air Exhaust Port Thread Gender	Female
Type	Pneumatic	Material	Stainless Steel
Connection Type	DIN	Series	515
Air Inlet Size	1/4 Inch	Fluid Inlet Size	1/2 Inch
Air Exhaust Port Size	3/8 Inch	Maximum Cycle Rate	182 CPM
Air Inlet Thread Gender	Female	Maximum Solid Size	0.09375 Inch
Air Inlet Thread Type	NPT	Diaphragm Compatible Material	PTFE
Diaphragm Material	PTFE Overmold	Fluid Outlet Size	1/2 Inch
Pump Ratio	1:1	Maximum Air Consumption	28 SCFM
Model	SaniForce	Manifold Configuration	End Port
Center Section Material	Polypropylene	Air Exhaust Port Thread Type	NPT
