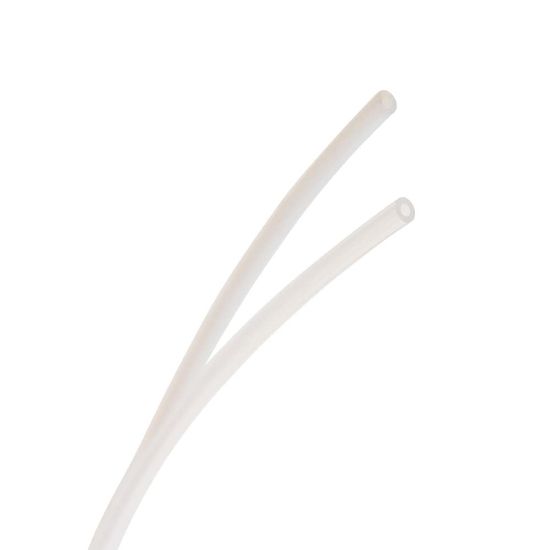

103-0250031-NT-100 - FEP Tubing

Name: 103-0250031-NT-100 - FEP Tubing
SKU: 103-0250031-NT-100
Price: 2.38 USD
Availability: InStock

FEP Tubing - Series 103 and 203 are used when you need chemical resistant tubing and long continuous lengths or a very clear tubing. FEP tubing extrusion lengths can exceed 1,000 foot continuous when necessary.

Manufacturer: Parker

Availability:

400 in stock

Olivette, MO

400

Partner Available:

700 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 103-0250031-NT-100

$2.38/foot

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Order Size	1/4
Product Type	Industrial Wall	Tube Wall Thickness	0.031
Standard Pack Qty (ft)	100.0	Tube Outside Diameter	0.25
Tube Inside Diameter	0.188	Application	Gas Sampling
Media	Water	Maximum Operating Pressure	14 bar
Maximum Operating Temperature	204 °C	Minimum Operating Temperature	-75 °C
Specifications Met	UL 94 V-0	Weight	0.030 kg/m
Color	Natural	Tube Material	Fluorinated Ethylene Propylene (FEP)
Compatible Fitting	Compression	Minimum Bend Radius	44 mm
Tube Outside Diameter	6.35 mm	Length per Package	30.4 mm
Tube Inside Diameter	0.188 inch	Minimum Burst Pressure	58 bar
