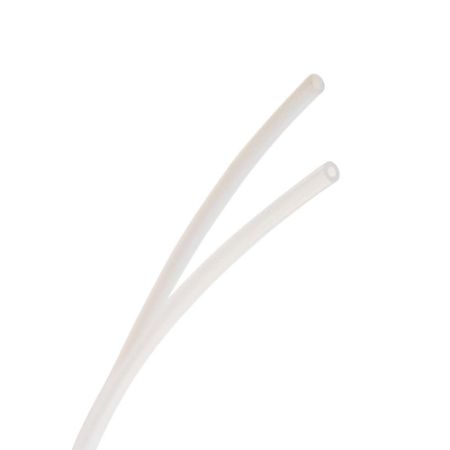

FEP Tubing

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker’s FEP tubing features a low refractive index, making it ideal for applications where operators must visually monitor materials passing through the tube. It is the clearest fluoropolymer tubing available and Parker uses a high molecular weight FEP resin that offers the best stress crack resistance. FEP tubing is used in paint spray applications making for easy color coding of the paint being delivered to the spray units as the color of the paint shows through. It is widely used in water purification systems due to its excellent transmission of UV light. Using bulk reels up to 1000 feet aid customers in providing installations with continuous length assemblies, free of connectors, and also reducing scrap when producing shorter length assemblies. Series 103 smoothbore and Series 203 metric tubing is similar to Series 101/201 PTFE respectively, but operates at the lower maximum temperature of 400°F (204°C). FEP tube is chemically inert, odorless, taste-less, non-wetting and non-leaching and is often used in fluid and material handling applications, such as chemical transfer. However, it also performs well in food & beverage or medical applications. Parker’s FEP resin meets the FDA requirements for repeated food contact and it is also USP Class VI compliant.

Markets:
• Fluid Transfer
• Life Science
• Food and Beverage

Features/Benefits:
• Offers best clarity of all fluoropolymers
• Long continuous lengths
• Chemically inert to nearly all industrial chemicals and solvents
• Weldable
• Non-wetting
• Nonflammable
• Lower cost alternative to PFA

Applications:
• UV applications
• Medical devices
• Thermal cycling
• Food/Beverage processing
• Robotics
• Gas sampling
• Chemical
• Instrumentation

Certifications/Compliance:
• ASTM D2116
• 21 CFR 177.1550 compliant
• USP Class VI Compliant
• UL 94 V-0 compliant

Technical Specifications:
• Extruded from virgin FEP (Fluorinated Ethylene Propylene)
• Qualified with Fittings from Parker Fluid System Connectors Division Fittings (See Brass Composite and Thermoplastic Fittings and Valves Catalog CAT3501E USA) • Working and burst pressures rated at 73°F /23°C
• All dimensions are nominal
• Random lengths, continuous lengths available as a custom run

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	Product Type	Tube Wall Thickness	Standard Pack Qty (ft)	Order Size	Tube Inside Diameter	Tube Outside Diameter	Application	Media	Maximum Operating Pressure	Maximum Operating Temperature	Minimum Operating Temperature	Specifications Met	Weight	Color	Tube Material	Compatible Fitting	Minimum Bend Radius	Tube Outside Diameter	Length per Package	Tube Inside Diameter	Minimum Burst Pressure	Product Type
103-0563031-NT-100	Backordered	Backordered	$5.54/foot	FT	Industrial Wall	0.031	100.0	9/16	0.5	0.563	Fluid Transfer	Chemicals	6 bar	204 °C	-75 °C	FDA 21 CFR 177.1550	0.054 lb/ft	Clear	Fluorinated Ethylene Propylene (FEP)	Compression	127 mm	14.3 mm	30.4 mm	0.79 mm	22 bar
103-0625062-NT-100	Backordered	Backordered	$11.56/foot	FT	Heavy Wall	0.062	100.0	5/8	0.5	0.625	Food & Beverage	Air	160 psi	400 °F	-75 °C	FDA 21 CFR 177.1550	0.102 lb/ft	Clear	Fluorinated Ethylene Propylene (FEP)	Compress-Align®	76 mm	15.88 mm	30.4 mm	12.7 mm	44 bar
103-0750062-NT-100	Backordered	Backordered	$14.35/foot	FT	Heavy Wall	0.062	100.0	3/4	0.625	0.75	Water Purification	Industrial Gases	130 psi	400 °F	-75 °C	FDA 21 CFR 177.1550	0.186 kg/m	Clear	Fluorinated Ethylene Propylene (FEP)	Compress-Align®	6 inch	0.75 inch	30.4 mm	15.88 mm	36 bar
103-1000062-NT-100	Backordered	Backordered	$19.52/foot	FT	Heavy Wall	0.062	100.0	1	0.875	1.0	Gas Sampling	Chemicals	90 psi	400 °F	-100 °F	FDA 21 CFR 177.1550	0.170 lb/ft	Clear	Fluorinated Ethylene Propylene (FEP)	Compression	203 mm	1 inch	100 ft	22.22 mm	360 psi
203-0400100-NT-100	477 in stock	Backordered	$1.96/foot	FT	Metric	1	100.0	4MM	2	4	Life Science	Chemicals	20 bar	400 °F	-75 °C	USP Class VI	0.020 kg/m	Natural	Fluorinated Ethylene Propylene (FEP)	Metric Compression	1/2 inch	0.157 inch	100 ft	2 mm	1160 psi	Metric
203-0600100-NT-100	Backordered	Backordered	$2.89/foot	FT	Metric	1	100.0	6MM	4	6	Laboratory	Chemicals	12 bar	400 °F	-75 °C	FDA 21 CFR 177.1550	0.023 lb/ft	Natural	Fluorinated Ethylene Propylene (FEP)	Metric Compression	29 mm	6 mm	30.4 mm	4 mm	720 psi	Metric
203-0800100-NT-100	Backordered	Backordered	$3.76/foot	FT	Metric	1	100.0	8MM	6	8	Fluid Transfer	Water	9 bar	400 °F	-100 °F	FDA 21 CFR 177.1550	0.023 lb/ft	Natural	Fluorinated Ethylene Propylene (FEP)	Metric Compression	2 inch	0.315 inch	30.4 mm	0.236 inch	520 psi	Metric
203-1000100-NT-100	Backordered	Backordered	$4.40/foot	FT	Metric	1	100.0	10MM	8	10	Water Purification	Chemicals	100 psi	400 °F	-75 °C	UL 94 V-0	0.041 lb/ft	Natural	Fluorinated Ethylene Propylene (FEP)	Metric Compression	2-1/8 inch	10 mm	30.4 mm	8 mm	28 bar	Metric
